A Direct3D9 to Vulkan layer using the DXVK backend. [Upstreamed to DXVK]

Joshie

Last update: Dec 24, 2022

Overview

This work has been upstreamed and is continuing development there

This repo is only open for the remaining issues on the tracker

https://github.com/doitsujin/dxvk

DXVK

A Vulkan-based translation layer for Direct3D 10/11 which allows running 3D applications on Linux using Wine.

For the current status of the project, please refer to the project wiki.

How to use

In order to install a DXVK package obtained from the release page into a given wine prefix, run the following commands from within the DXVK directory:

export WINEPREFIX=/path/to/.wine-prefix
./setup_dxvk.sh install

This will copy the DLLs into the system32 and syswow64 directories of your wine prefix and set up the required DLL overrides. Pure 32-bit prefixes are also supported.

The setup script optionally takes the following arguments:

--symlink: Create symbolic links to the DLL files instead of copying them. This is especially useful for development.
--without-dxgi: Do not install DXVK's DXGI implementation and use the one provided by wine instead. This is necessary for both vkd3d and DXVK to work within the same wine prefix.

Verify that your application uses DXVK instead of wined3d by checking for the presence of the log file d3d11.log in the application's directory, or by enabling the HUD (see notes below).

In order to remove DXVK from a prefix, run the following command:

export WINEPREFIX=/path/to/.wine-prefix
./setup_dxvk.sh uninstall

Build instructions

Requirements:

wine 3.10 or newer
Meson build system (at least version 0.46)
MinGW64 6.0 compiler and headers
glslang compiler

Building DLLs

The simple way

Inside the DXVK directory, run:

./package-release.sh master /your/target/directory --no-package

This will create a folder dxvk-master in /your/target/directory, which contains both 32-bit and 64-bit versions of DXVK, which can be set up in the same way as the release versions as noted above.

In order to preserve the build directories for development, pass --dev-build to the script. This option implies --no-package. After making changes to the source code, you can then do the following to rebuild DXVK:

# change to build.32 for 32-bit
cd /your/target/directory/build.64
ninja install

A winelib build can be created by adding the --winelib argument.

Compiling manually

# 64-bit build. For 32-bit builds, replace
# build-win64.txt with build-win32.txt
meson --cross-file build-win64.txt --buildtype release --prefix /your/dxvk/directory build.w64
cd build.w64
ninja install

The D3D10, D3D11 and DXGI DLLs will be located in /your/dxvk/directory/bin. Setup has to be done manually in this case.

Notes on Vulkan drivers

Before reporting an issue, please check the Wiki page on the current driver status and make sure you run a recent enough driver version for your hardware.

Online multi-player games

Manipulation of Direct3D libraries in multi-player games may be considered cheating and can get your account banned. This may also apply to single-player games with an embedded or dedicated multiplayer portion. Use at your own risk.

HUD

The DXVK_HUD environment variable controls a HUD which can display the framerate and some stat counters. It accepts a comma-separated list of the following options:

devinfo: Displays the name of the GPU and the driver version.
fps: Shows the current frame rate.
frametimes: Shows a frame time graph.
submissions: Shows the number of command buffers submitted per frame.
drawcalls: Shows the number of draw calls and render passes per frame.
pipelines: Shows the total number of graphics and compute pipelines.
memory: Shows the amount of device memory allocated and used.
gpuload: Shows estimated GPU load. May be inaccurate.
version: Shows DXVK version.
api: Shows the D3D feature level used by the application. Does not work correctly for D3D10 at the moment.
compiler: Shows shader compiler activity

Additionally, DXVK_HUD=1 has the same effect as DXVK_HUD=devinfo,fps, and DXVK_HUD=full enables all available HUD elements.

Device filter

Some applications do not provide a method to select a different GPU. In that case, DXVK can be forced to use a given device:

DXVK_FILTER_DEVICE_NAME="Device Name" Selects devices with a matching Vulkan device name, which can be retrieved with tools such as vulkaninfo. Matches on substrings, so "VEGA" or "AMD RADV VEGA10" is supported if the full device name is "AMD RADV VEGA10 (LLVM 9.0.0)", for example. If the substring matches more than one device, the first device matched will be used.

Note: If the device filter is configured incorrectly, it may filter out all devices and applications will be unable to create a D3D device.

State cache

DXVK caches pipeline state by default, so that shaders can be recompiled ahead of time on subsequent runs of an application, even if the driver's own shader cache got invalidated in the meantime. This cache is enabled by default, and generally reduces stuttering.

The following environment variables can be used to control the cache:

DXVK_STATE_CACHE=0 Disables the state cache.
DXVK_STATE_CACHE_PATH=/some/directory Specifies a directory where to put the cache files. Defaults to the current working directory of the application.

Debugging

The following environment variables can be used for debugging purposes.

VK_INSTANCE_LAYERS=VK_LAYER_KHRONOS_validation Enables Vulkan debug layers. Highly recommended for troubleshooting rendering issues and driver crashes. Requires the Vulkan SDK to be installed on the host system.
DXVK_LOG_LEVEL=none|error|warn|info|debug Controls message logging.
DXVK_LOG_PATH=/some/directory Changes path where log files are stored.
DXVK_CONFIG_FILE=/xxx/dxvk.conf Sets path to the configuration file.

Troubleshooting

DXVK requires threading support from your mingw-w64 build environment. If you are missing this, you may see "error: 'mutex' is not a member of 'std'". On Debian and Ubuntu, this can usually be resolved by using the posix alternate, which supports threading. For example, choose the posix alternate from these commands (use i686 for 32-bit):

update-alternatives --config x86_64-w64-mingw32-gcc
update-alternatives --config x86_64-w64-mingw32-g++

Comments

Guild wars 2 cursor remains on screen and blocks turning camera
Guild wars 2 uses right click to start turning the camera. Typically cursor disappears and you are free to rotate the camera as many degrees as you want. If d9vk is used, cursor remains on screen and rotation is limited by cursor hitting the screen left or right edges. Game also has action camera mode in which cursor also disappears, again not the case when d9vk is used. Cursor remains on screen and limits the turning by bumping into screen edge and staying there. Is this the relative cursor/absolute cursor issue? I didn't provide any logs because this isn't a crash. I'll be happy to provide them for you should you need them.

Sometimes the bug only manifests when a map change happens (works on the initial map, breaks when you change zones)

Software information

Running Guild Wars 2 64 bit on Archlinux

System information

GPU: AMD Rx580

Driver: vulkan-radeon 19.0.3-1

Wine version: 4.7-1 or 3.18-esync-pba or 4.6-tkg

DXVK version: git master 6f9a3e6e
opened by Mel34 68
GuildWars 2 Black Screen & Crash
On Windows 10 the 64bit client gets stuck on a black screen while on WINE it gets to the character select screen and crashes. The 32bit client was not tested.

Software information

GuildWars 2 64-bit client

System information

GPU: Geforce GTX 980Ti (Linux), Geforce GTX 960 (Windows)

Driver: 418.52.03 and 425.31 respectively

Wine version: WINE-TKG 4.5 Git Master

DXVK version: git master

Apitrace file(s)

Gw2-64.7z

Log files

d3d9.log: Gw2-64_d3d9.log

wine log

d3d9.log with fullscreen patch
opened by ronoverdrive 58
Rocket League crashing with 0.10
I've crashed three times now during competitive unfortunately I had logging disabled. Opening this in case it happens again.

Software information

Settings:

System information

GPU: GTX 960

Driver: 418.56

Wine version: Staging 4.6

D9VK version: 0.10

Apitrace file(s)

https://drive.google.com/open?id=10dGL1Z-tsyyszW1XmrMMboduGy9ZChBp

Log files
opened by AccountOneOff 42
Shift 2 Unleashed run but not load race and others problems
Software information

Shift2 Unleashed shift2u.exe

System information

GPU: radeon HD7770

Driver: radv

Wine version: 4.1 staging

DXVK version: 0.10

Apitrace file(s)

Put a link here

Log files

d3d9.log info: Game: shift2u.exe info: DXVK: d9vk-0.10 warn: OpenVR: Failed to locate module info: Enabled instance extensions: info: VK_KHR_get_physical_device_properties2 info: VK_KHR_surface info: VK_KHR_win32_surface info: AMD RADV CAPE VERDE (LLVM 7.0.1): info: Driver: 19.0.3 info: Vulkan: 1.1.90 info: Memory Heap[0]: info: Size: 768 MiB info: Flags: 0x1 info: Memory Type[0]: Property Flags = 0x1 info: Memory Heap[1]: info: Size: 256 MiB info: Flags: 0x1 info: Memory Type[2]: Property Flags = 0x7 info: Memory Heap[2]: info: Size: 3072 MiB info: Flags: 0x0 info: Memory Type[1]: Property Flags = 0x6 info: Memory Type[3]: Property Flags = 0xe info: Process set as DPI aware info: Game: shift2u.exe info: DXVK: d9vk-0.10 warn: OpenVR: Failed to locate module info: Enabled instance extensions: info: VK_KHR_get_physical_device_properties2 info: VK_KHR_surface info: VK_KHR_win32_surface info: AMD RADV CAPE VERDE (LLVM 7.0.1): info: Driver: 19.0.3 info: Vulkan: 1.1.90 info: Memory Heap[0]: info: Size: 768 MiB info: Flags: 0x1 info: Memory Type[0]: Property Flags = 0x1 info: Memory Heap[1]: info: Size: 256 MiB info: Flags: 0x1 info: Memory Type[2]: Property Flags = 0x7 info: Memory Heap[2]: info: Size: 3072 MiB info: Flags: 0x0 info: Memory Type[1]: Property Flags = 0x6 info: Memory Type[3]: Property Flags = 0xe info: Process set as DPI aware info: Enabled device extensions: info: VK_EXT_conditional_rendering info: VK_EXT_shader_viewport_index_layer info: VK_EXT_transform_feedback info: VK_EXT_vertex_attribute_divisor info: VK_KHR_dedicated_allocation info: VK_KHR_descriptor_update_template info: VK_KHR_draw_indirect_count info: VK_KHR_driver_properties info: VK_KHR_get_memory_requirements2 info: VK_KHR_image_format_list info: VK_KHR_maintenance1 info: VK_KHR_maintenance2 info: VK_KHR_sampler_mirror_clamp_to_edge info: VK_KHR_shader_draw_parameters info: VK_KHR_swapchain info: DXVK: Read 205 valid state cache entries info: DXVK: Using 2 compiler threads warn: D3D9: VK_FORMAT_D24_UNORM_S8_UINT -> VK_FORMAT_D32_SFLOAT_S8_UINT info: D3D9DeviceEx::ResetEx: Requested Presentation Parameters

Width: 1440

Height: 900

Format: A8R8G8B8

Auto Depth Stencil: true

Windowed: false

warn: D3D9DeviceEx::SetRenderState: Unhandled render state 9 warn: D3D9DeviceEx::SetRenderState: Unhandled render state 16 warn: D3D9DeviceEx::SetRenderState: Unhandled render state 37 warn: D3D9DeviceEx::SetRenderState: Unhandled render state 38 warn: D3D9DeviceEx::SetRenderState: Unhandled render state 60 warn: D3D9DeviceEx::SetRenderState: Unhandled render state 136 warn: D3D9DeviceEx::SetRenderState: Unhandled render state 137 warn: D3D9DeviceEx::SetRenderState: Unhandled render state 141 warn: D3D9DeviceEx::SetRenderState: Unhandled render state 142 warn: D3D9DeviceEx::SetRenderState: Unhandled render state 145 warn: D3D9DeviceEx::SetRenderState: Unhandled render state 146 warn: D3D9DeviceEx::SetRenderState: Unhandled render state 154 warn: D3D9DeviceEx::SetRenderState: Unhandled render state 155 warn: D3D9DeviceEx::SetRenderState: Unhandled render state 158 warn: D3D9DeviceEx::SetRenderState: Unhandled render state 161 warn: D3D9DeviceEx::SetRenderState: Unhandled render state 166 warn: D3D9DeviceEx::SetRenderState: Unhandled render state 172 warn: D3D9DeviceEx::SetRenderState: Unhandled render state 173 warn: D3D9DeviceEx::SetRenderState: Unhandled render state 178 warn: D3D9DeviceEx::SetRenderState: Unhandled render state 179 warn: D3D9DeviceEx::SetRenderState: Unhandled render state 182 warn: D3D9DeviceEx::SetTextureStageState: Stub info: Presenter: Actual swap chain properties: Format: VK_FORMAT_B8G8R8A8_UNORM Present mode: VK_PRESENT_MODE_FIFO_KHR Buffer size: 1440x900 Image count: 3 warn: D3D9DeviceEx::ColorFill: Stub warn: D3D9DeviceEx::ColorFill: Stub warn: D3D9DeviceEx::ColorFill: Stub info: Presenter: Actual swap chain properties: Format: VK_FORMAT_B8G8R8A8_UNORM Present mode: VK_PRESENT_MODE_FIFO_KHR Buffer size: 1x1 Image count: 3

d3d11.log:

dxgi.log:
opened by games4tux 41
Beyond Good and Evil has multiple graphical issues
Please describe your issue as accurately as possible. If you run into a problem with a binary release, make sure to test with latest master as well.

Important: When reporting an issue with a specific game or application, such as crashes or rendering issues, please include log files and a D3D11 Apitrace (see https://github.com/apitrace/apitrace) so that the issue can be reproduced. In order to create a trace, run wine apitrace.exe trace -a dxgi YOURGAME.exe. DO NOT use DXVK together with apitrace!

Software information

Beyond Good and Evil (GOG)

System information

GPU: Nvidia GeForce GTX 960

Driver: 430.26.0

Wine version: 4.12 TKG

DXVK version: https://github.com/Joshua-Ashton/d9vk/commit/44e961c83ffd8ad5daf9b4e83eb7d831fdb28739

Apitrace file(s)

https://drive.google.com/file/d/1eSGC2SHqAdvR0GGgbUYHOtZQond50A6a/view?usp=sharing (Around 1.1 GB compressed, 6.1 GB uncompressed)

Log files

d3d9.log: BGE_d3d9.log

The in-game graphics seem to be...wrong. For example, the eye colors are unusual and the screen seems to overlaid with a pink filter that disappears after opening a menu, and the character intros are not displayed. The log is from playing somewhat longer than the apitrace, so I don't know if the "DOTPRODUCT" thing is in the apitrace. Also, the native Windows had flickering and stuff, so I don't know if that made it in. Thanks!

EDIT: Just wanted to give everyone an update on the progress made since I opened this bug.

Some things have improved:

[x] Some text invisible

D9VK:

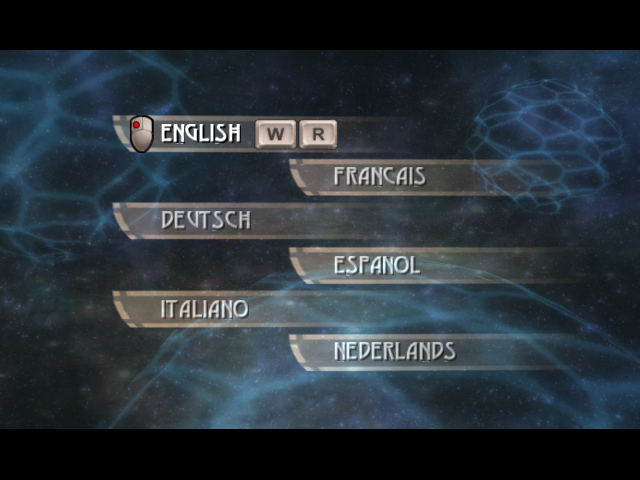

[x] Menu rendering

D9VK:

[x] Fog effect obscures much of the graphics

D9VK:

[x] No clouds present

D9VK:

Native:

[x] No sun present

D9VK:

Native:

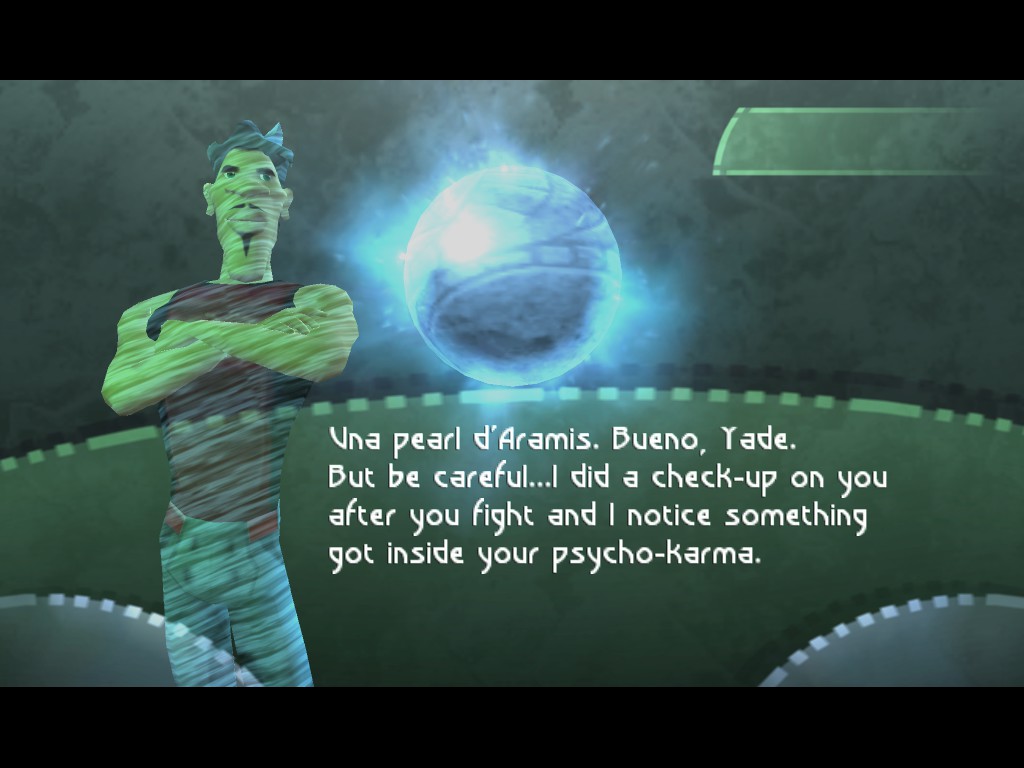

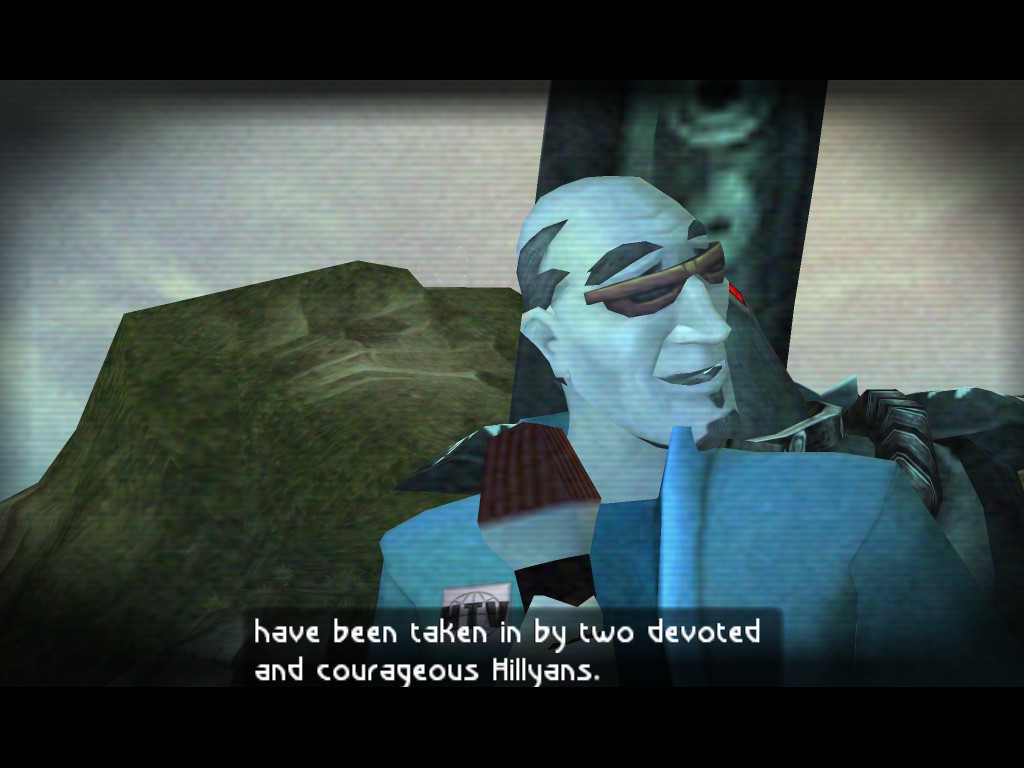

[x] NPC Eye colors are strange

D9VK:

Native:

[x] "Streaked" textures

D9VK:

Native:

[x] Buttons not in proper position

D9VK:

Native:

Some issues remain:

[x] Minor text glitches around certain letters (N and S, for example)

D9VK :

Native:

[x] Camera effect is warped

D9VK:

Native:

[x] "Glow" missing on planet

D9VK:

Native:

[x] Character portraits obscured by white screen

D9VK:

Native:

[x] Protagonist eye colors are strange

D9VK:

Native:

[x] Reflection issues

D9VK:

Native:

Anyway, that's about it. I know that was a lot of photos, but I thought they'd be helpful for describing what's happened. With the last issue, I may make another trace now that I know what I'm looking for.

EDIT 2: The new trace is done! It's a little bit longer than the first one, but I did more, so it's OK, I hope.
opened by CartoonFan 40
Grand Theft Auto: San Andreas has graphics and gameplay issues
Please describe your issue as accurately as possible. If you run into a problem with a binary release, make sure to test with latest master as well.

Important: When reporting an issue with a specific game or application, such as crashes or rendering issues, please include log files and a D3D11 Apitrace (see https://github.com/apitrace/apitrace) so that the issue can be reproduced. In order to create a trace, run wine apitrace.exe trace -a dxgi YOURGAME.exe. DO NOT use DXVK together with apitrace!

Software information

Grand Theft Auto San Andreas (Steam 12120)

System information

GPU: Nvidia GTX 960

Driver: 430.34.0

Wine version: 4.12.1 TKG

DXVK version: https://github.com/Joshua-Ashton/d9vk/commit/bc64e8e0263004908090da60b4c478a6573fe7d0

Apitrace file(s)

https://drive.google.com/file/d/1PmN6V0aXpUYCKG14GS2BCpL5_4ZrwcYi/view?usp=sharing

Motion blur and first mission lockup trace: https://drive.google.com/file/d/1ADG7IdhmrCxUgb3KRIMg9icgnZkkmgwt/view?usp=sharing

Log files

d3d9.log: gta-sa_d3d9.log

Hello! I've noticed a weird bug where most vehicles are colored beige up close, but regain their color when viewed at a distance. Some environmental elements are also affected (walls, lights, etc.) It doesn't seem to affect people or motorcycles.

Thanks!

EDIT: Replaced the trace with a tar.xz.

EDIT 2:

Here's a summary of what's been seen so far:

[x] Lighting issues

[x] Car texture coloring

[x] Motion blur

[x] First mission freeze

I added another trace which includes motion blur and the first mission gameplay. Cheats were used to obtain a fast car with nitrous, but shouldn't affect anything else.
opened by CartoonFan 36
StarCraft 2 don't runs when D9VK is in use.
Hi! Yes, I know that D9VK is still in early development, so for the time being we should not expect too much from it, but I’ll just write in advance about this issue.

Software information

StarCraft 2 (Direct3D9-only game).

System information

OS: Arch Linux

GPU: AMD Radeon HD 7850

Driver: AMDGPU (manually enabled), Mesa-git

Wine version: Wine-tkg-git with latest Wine Staging git

DXVK version: winelib latest git from Wine-tkg-git

Apitrace file(s)

SC2_x64 Trace

Log files:

SC2_x64_d.zip
opened by Kerrung 33

Starcraft 2 crashes on start

Starcraft 2 crashes on start when D9VK is installed. An all-black full screen window shows up with their mouse cursor and then it just crashes.

Software information

Starcraft 2 latest version with medium graphics settings (and some settings on high).

System information

GPU: AMD RX 570
Driver: RADV ~~mesa 19.0.3~~ EDIT: also tried with 19.1 from git, see comment below
Wine version: wine-4.7-1.fc30.x86_64
D9VK version: ~~https://git.froggi.es/joshua/d9vk/pipelines/381/builds~~ EDIT: last attempt with 29ec929496917e812e7c3e09e35a0aeaed9eb82b

Log (with mesa 19.0.3)

[Timur@timur-xps ~]$ rm "/home/Timur/.wineSC2/drive_c/Program Files (x86)/StarCraft II/Support64/SC2_x64.dxvk-cache"
[Timur@timur-xps ~]$ WINEDEBUG=-all NIR_VALIDATE=0 WINEPREFIX=/home/Timur/.wineSC2 wine64 "C:\Program Files (x86)\StarCraft II\Support64\SC2Switcher_x64.exe"
info:  Game: SC2_x64.exe
info:  DXVK: v1.1.1
warn:  OpenVR: Failed to locate module
info:  Enabled instance extensions:
info:    VK_KHR_get_physical_device_properties2
info:    VK_KHR_surface
info:    VK_KHR_win32_surface
info:  AMD RADV POLARIS10 (LLVM 8.0.0):
info:    Driver: 19.0.3
info:    Vulkan: 1.1.90
info:    Memory Heap[0]:
info:      Size: 3840 MiB
info:      Flags: 0x1
info:      Memory Type[0]: Property Flags = 0x1
info:    Memory Heap[1]:
info:      Size: 256 MiB
info:      Flags: 0x1
info:      Memory Type[2]: Property Flags = 0x7
info:    Memory Heap[2]:
info:      Size: 4096 MiB
info:      Flags: 0x0
info:      Memory Type[1]: Property Flags = 0x6
info:      Memory Type[3]: Property Flags = 0xe
info:  Intel(R) UHD Graphics 620 (Kabylake GT2):
info:    Driver: 19.0.3
info:    Vulkan: 1.1.96
info:    Memory Heap[0]:
info:      Size: 10908 MiB
info:      Flags: 0x1
info:      Memory Type[0]: Property Flags = 0xf
info:    Memory Heap[1]:
info:      Size: 1024 MiB
info:      Flags: 0x1
info:      Memory Type[1]: Property Flags = 0xf
info:  Process set as DPI aware
[Timur@timur-xps ~]$ info:  Enabled device extensions:
info:    VK_EXT_conditional_rendering
info:    VK_EXT_memory_priority
info:    VK_EXT_shader_viewport_index_layer
info:    VK_EXT_transform_feedback
info:    VK_EXT_vertex_attribute_divisor
info:    VK_KHR_dedicated_allocation
info:    VK_KHR_descriptor_update_template
info:    VK_KHR_draw_indirect_count
info:    VK_KHR_driver_properties
info:    VK_KHR_get_memory_requirements2
info:    VK_KHR_image_format_list
info:    VK_KHR_maintenance1
info:    VK_KHR_maintenance2
info:    VK_KHR_sampler_mirror_clamp_to_edge
info:    VK_KHR_shader_draw_parameters
info:    VK_KHR_swapchain
warn:  DXVK: No state cache file found
warn:  DXVK: Creating new state cache file
info:  DXVK: Using 4 compiler threads
warn:  D3D9: VK_FORMAT_D24_UNORM_S8_UINT -> VK_FORMAT_D32_SFLOAT_S8_UINT
info:  D3D9DeviceEx::ResetEx:
  Requested Presentation Parameters
    - Width:              0
    - Height:             0
    - Format:             A8R8G8B8
    - Auto Depth Stencil: false
    - Windowed:           true

warn:  D3D9DeviceEx::SetRenderState: Unhandled render state 9
warn:  D3D9DeviceEx::SetRenderState: Unhandled render state 16
warn:  D3D9DeviceEx::SetRenderState: Unhandled render state 37
warn:  D3D9DeviceEx::SetRenderState: Unhandled render state 38
warn:  D3D9DeviceEx::SetRenderState: Unhandled render state 60
warn:  D3D9DeviceEx::SetRenderState: Unhandled render state 136
warn:  D3D9DeviceEx::SetRenderState: Unhandled render state 137
warn:  D3D9DeviceEx::SetRenderState: Unhandled render state 141
warn:  D3D9DeviceEx::SetRenderState: Unhandled render state 142
warn:  D3D9DeviceEx::SetRenderState: Unhandled render state 145
warn:  D3D9DeviceEx::SetRenderState: Unhandled render state 146
warn:  D3D9DeviceEx::SetRenderState: Unhandled render state 154
warn:  D3D9DeviceEx::SetRenderState: Unhandled render state 155
warn:  D3D9DeviceEx::SetRenderState: Unhandled render state 158
warn:  D3D9DeviceEx::SetRenderState: Unhandled render state 161
warn:  D3D9DeviceEx::SetRenderState: Unhandled render state 166
warn:  D3D9DeviceEx::SetRenderState: Unhandled render state 172
warn:  D3D9DeviceEx::SetRenderState: Unhandled render state 173
warn:  D3D9DeviceEx::SetRenderState: Unhandled render state 178
warn:  D3D9DeviceEx::SetRenderState: Unhandled render state 179
warn:  D3D9DeviceEx::SetRenderState: Unhandled render state 182
warn:  D3D9DeviceEx::SetTextureStageState: Stub
info:  Presenter: Actual swap chain properties:
  Format:       VK_FORMAT_B8G8R8A8_UNORM
  Present mode: VK_PRESENT_MODE_FIFO_KHR
  Buffer size:  3840x2160
  Image count:  3
info:  Game: SC2_x64.exe
info:  DXVK: v1.1.1
warn:  OpenVR: Failed to locate module
info:  Enabled instance extensions:
info:    VK_KHR_get_physical_device_properties2
info:    VK_KHR_surface
info:    VK_KHR_win32_surface
info:  AMD RADV POLARIS10 (LLVM 8.0.0):
info:    Driver: 19.0.3
info:    Vulkan: 1.1.90
info:    Memory Heap[0]:
info:      Size: 3840 MiB
info:      Flags: 0x1
info:      Memory Type[0]: Property Flags = 0x1
info:    Memory Heap[1]:
info:      Size: 256 MiB
info:      Flags: 0x1
info:      Memory Type[2]: Property Flags = 0x7
info:    Memory Heap[2]:
info:      Size: 4096 MiB
info:      Flags: 0x0
info:      Memory Type[1]: Property Flags = 0x6
info:      Memory Type[3]: Property Flags = 0xe
info:  Intel(R) UHD Graphics 620 (Kabylake GT2):
info:    Driver: 19.0.3
info:    Vulkan: 1.1.96
info:    Memory Heap[0]:
info:      Size: 10908 MiB
info:      Flags: 0x1
info:      Memory Type[0]: Property Flags = 0xf
info:    Memory Heap[1]:
info:      Size: 1024 MiB
info:      Flags: 0x1
info:      Memory Type[1]: Property Flags = 0xf
info:  D3D9DeviceEx::ResetEx:
  Requested Presentation Parameters
    - Width:              0
    - Height:             0
    - Format:             A8R8G8B8
    - Auto Depth Stencil: false
    - Windowed:           true

info:  Presenter: Actual swap chain properties:
  Format:       VK_FORMAT_B8G8R8A8_UNORM
  Present mode: VK_PRESENT_MODE_FIFO_KHR
  Buffer size:  3840x2160
  Image count:  3

[Timur@timur-xps ~]$

opened by Venemo 32

Battlefield 2 → crash when "Lightning" and "Dynamic Shadows" are set to high + bad transparency
with d9vk: https://imgur.com/InHs1gi

System information

GPU: Nvidia GT 730M

Driver: 435.21

Wine version: Proton 4.11

DXVK version: #894

Apitrace file(s)

https://mega.nz/#!ez4i2I6J!RxDrf-ZPboOqCQ_Vusmk2U1hDVjJIv9ofszpQ9WQIYE

Log files

battlefield2-grass.log
opened by NerosTie 31
The Witcher not rendering correctly
The Witcher doesn't render intro movies (green screen) but it does render the menu screen just not the menus. I can load my game save but it crashes before ever reaching in-game.

Software information

The Witcher Enhanced Edition w/ Rise of the White Wolf mod

System information

GPU: GTX 960

Driver: 418.56

Wine version: Staging 3.21

DXVK version: b71f5148797fba8e2a78fdb265020216cebb725d

Apitrace file(s)

https://drive.google.com/open?id=1Ovokqp7miqC02vq7eM8rXZNZTHQGIGry

Log files

witcher_d3d9.zip
opened by AccountOneOff 31
Call of Duty: WaW, MW, and MW2 crash when loading into maps on Radeon cards
When running any of the aforementioned Call of Duty games on Linux with the below system configuration, the games run correctly until a map is loaded. As soon as the game attempts to display the game world, it crashes with no error message. This behavior is the same across all 3 games, although the individual issues may be unrelated. Not all games with D9VK have this issue on my system-- most notably, A Hat in Time functions perfectly.

Software information

The issue has been noted in the following games:

Call of Duty: World at War

Call of Duty 4: Modern Warfare

Call of Duty: Modern Warfare 2

System information

GPU: RX 480 8GB

Driver: Mesa 19.0.6

Wine version: Proton 4.11

D9VK version: 0.13f and master

Log files

Modern Warfare: steam-7940.log

World at War: steam-10090.log

Modern Warfare 2: steam-10180.log
opened by serebit 30
Where get d3d8.dll?

Just copy from ms sites not work. ~/Desktop/Wine/dxvk-1.9.4/x64/d3d8.dll: File not found. Skipping. ~/Desktop/Wine/dxvk-1.9.4/x32/d3d8.dll: File not found. Skipping.

opened by annaview 2
Battlefield 2 → crash when "Lightning" and "Dynamic Shadows" are set to high

I tried with DXVK 1.6 and #1259 buid. when the graphics are set to high it crashes when loading a map.

If you want to try yourself this is the game installer I use: https://drive.google.com/uc?id=1jBCMUz3LYQpVyYC4rDwdwxG1OJP3a6x4&export=download With this launcher: https://www.bf2hub.com/home/downloads.php

You can run the game without the launcher but you can use it to run the game in window mode, that mode shows the error instead of just crashing to desktop

When I switch off DXVK in lutris the game runs perfectly

opened by fermmm 1
AquaNox 2 → EXCEPTION_ACCESS_VIOLATION
When I want to change the resolution, I have this error:

System information

GPU: Nvidia GT 730M

Driver: 440.36

Wine version: Proton 4.11

DXVK version: #1013

Log files

aquanox2-d9vk.log aquanox2-wined3d.log
opened by NerosTie 6
Warhammer 40000 Spacemarines freeze in menus (once appear mouse cursor)

Warhammer 40000 Spacemarines freeze in menus (once appear mouse cursor)

Software information

Warhammer 40000 Spacemarines

System information

Nvidia Drivers 435.27.08 (run package)

Lubuntu 20.04 x64 - Kernel 5.3.0-18 generic (ubuntu mainline) -

CPUFreq: Performance

CPU: Core i3 8350K Tri-Core (Coffelake 14nm) 5.0Ghz - Zalman CNPS 10x Performa+ - CoolerMaster MasterFan Pro Air Balance (83 CFM)

MEMORY: 12GB DDR4 2400mhz (8x1 - 4x1) Mushkin (dual channel: 37.5 gb/s - Flex Mode)

GPU: Gigabyte Nvidia Geforce GTX 1050 OC (GP107 14nm: 640 Shaders / 40 TMUS / 32 ROPS) Windforce 2GB DDR5 7000Mhz 128Bit (110Gb/s)

MAINBOARD: ASUS Z370-P

Apitrace file(s)

https://mega.nz/#!WZtS3SBb!ZjjVtsRMo1QV2QXLqNxbMh2YkPW6eAaXKX0TTjv0EPk

Log files

SpaceMarine_d3d9.log

opened by mrdeathjr28 2
MTA San Andreas: Freezing on loading screen
When I try to start MTA: SA with D9VK, the game opens fine, but when the GTA: SA start screen appears, the game freezes and doesn't seem to load even after waiting a few minutes (but after some time, the CPU usage of the proxy_sa.exe processes goes down and the game window displays nothing)

But after disabling D9VK (and using wined3d), the game opens and loads fine and I could even get into a server (although the performance is almost a slideshow)

GTA San Andreas and SAMP both open and load fine with D9VK (and the performance is good)

Software information

Game: MTA San Andreas 1.5.7 (a multiplayer mod for GTA San Andreas)

Settings used:

Resolution: 1366x768 (32-bit) (native resolution)

Visual quality: Low

Fullscreen mode: Borderless windowed I can add more detailed information if needed

I used a 32-bit Wine prefix with WIndows 7 selected as the Windows version in winecfg

System information

GPU: Intel HD Graphics 500

Driver: Mesa 19.2.4

Wine version: 4.19-staging

D9VK version: https://github.com/Joshua-Ashton/d9vk/commit/3a3a7349e7b083368aff196a144bfc31444fcb57

Apitrace file (made using WineD3D)

https://drive.google.com/open?id=12KriGbUoDzr5v52vg4Y1etkfmhwFnwrO

Log files

d3d9.log: https://del.dog/petepohomo
opened by TheComputerGuy96 6
Reshade - black screen when d3d9 is set to native

When d3d9 is set to native in winecfg, ReShade main window is completely black So I have to set d3d9 to builtin for ReShade_Setup_4.4.2.exe to be able to avoid the black screen. I know that it may be a dull issue to report, but I reported it here any way for anyone having the same issue.

opened by Ahmed-E-86 8

Releases(0.40.1)

0.40.1(Dec 15, 2019)
Of course @tannisroot finds a hidden bug via. The Sims 2 that's existed since forever and is mildly significant...

Please don't do it again! 🐸🐸🐸🐸🐸🐸🐸🐸🐸🐸

Bug Fixes

Fixed the default value for COLOR0 in vertex shaders to be vec4(1)

Fixed a bug where the slot bits for default shader outputs were being incorrectly applied and therefore incorrectly patched by the backend causing them to be replaced with vec4(0)

Notes

Please do not use wine's d3d9x or d3dcompiler with d9vk. They make invalid API calls and generate bad shaders. I cannot stress this enough.

If you are compiling with MinGW, please use the dwarf2 exception patch to improve performance.

Acknowledgements

ドイツ人 (doitsujin): for creating the base of the project, DXVK

Rhedox and CME: for helping with debugging

VKx and Frog Family Discords: for helping with testing

You: for your love and support and helping me get to where I am today! ❤

Thank you and Enjoy! <3

- Josh 🐸 :heart: ~
Source code(tar.gz)
Source code(zip)
d9vk-0.40.1.tar.gz(7.36 MB)
0.40(Dec 14, 2019)
Ah, refreshing. Much better than the ripoff by that 🐕 called 'Bepis'.

Features

Implemented the ability to use more than 4GB VRAM on 32-bit applications.

Helps greatly in modded Skyrim/Oblivion, etc.

Enabled async presentation across all vendors

Removed an unncecessary CS sync point in query data retrieval

Minor query flushing improvements

Improve internal time measurement (use new platform-specific clock)

Works around MinGW's high_resolution_clock being absolutely terrible.

Deferred MANAGED + SYSTEMMEM buffers upload until PrepareDraw time

Fixes performance in Risen and Legend of the Heroes: Trails of the Sky.

Implemented D3DTA_CONSTANT

Fixes bloom rendering in SpinTyres/Mudrunner

Improved D3D9Ex compatibility/specifics

Handled ResetEx vs. Reset nuance.

Misc. code cleanup/refactoring

Made WRITEONLY buffers mapped directly

May improve performance, but also works around a game bug in CS:GO where it was still writing to the buffer after it was unlocked.

Implemented SetDialogBoxMode

Implemented vertex blending

Implemented indexed vertex blending (including for SWVP)

Remade the sampler count HUD to use the new more extensible HUD system

Minor performance improvements wrt. binding shaders, binding input layouts and constant uploading

Added option d3d9.dialogBoxMode, which can be enabled to disable D9VK taking exclusive fullscreen

Bug Fixes

Correctly handled a w == 0 quirk for POSITION_T

Fixed Sun Flares in GTA: SA.

Fixed NaN/INF light attentations rendering incorrectly (@CME42)

Fixes Virtual Vodka demo by Fairlight.

Fixed ending TIMESTAMPDISJOINT queries

Removed exposing VCACHE for Nvidia (matches native) and updated the values to what modern cards expose.

Fixed memory tracking behaviour for D3D9Ex

Fixed Vampire: The Masquerade Bloodlines launching on machines with high amounts of VRAM

Worked around a game bug, it was creating textures until it couldn't anymore to measure VRAM amount.

Fixed mirrors in Max Payne 2.

Implicitly saturated some fixed function operations

Fixed user videos on TVs in The Sims 2.

Worked around a game bug where they would display black if X4R4G4B4 was exposed as a potential RT format.

Fixed Silent Hunter 3 rendering.

Fixed function texture transform paddings now behave as 1 in range of the actual input to what the rasterizer texcoord, and 0 outside of that.

Fixed aspect ratio in Senran Kagura Shinovi Versus

Worked around a game bug where if any ultra-wide modes were exposed (even though the game is 16:9 only) it would chose them by disabling non 16:9 modes for that game.

Fix width/height for "partial presentations" that we do.

Fixed Dungeons and Dragons: Dragonshard rendering as black

It was writing to FOG but it didn't have FOG enabled which we weren't treating properly.

Fixed shadows in Crysis rendering incorrectly

The Microsoft documentation for the TEXKILL op is incorrect, all 4 components are used when the shader is SM2 or above.

Fixed a potential race that could happen in ProcessVertices

Fixed Metal Slug X crash to startup

A bug in this old version of ANGLE lists D3DFMT_D32 as a possible depth format but then proceeds to not handle it in the OpenGL conversion, causing an UNREACHABLE to occur and thus a crash.

Disabled D3DFMT_D32 for this game.

Fixed autosculpt in Need for Speed: Carbon

Mark MANAGED as needing an upload in Lock rather than Unlock, the game relies on this quirk as it doesnt unlock it until after the frame but still expects you to see the preview by locking it.

Carried over the The Sims 2 app profiles over to the spinoff titles (@nelsonjchen)

Fixed black trees in Risen 1

Position needed to be marked as invariant.

Notes

Please do not use wine's d3d9x or d3dcompiler with d9vk. They make invalid API calls and generate bad shaders. I cannot stress this enough.

If you are compiling with MinGW, please use the dwarf2 exception patch to improve performance.

Acknowledgements

ドイツ人 (doitsujin): for creating the base of the project, DXVK

Rhedox and CME: for helping with debugging

VKx and Frog Family Discords: for helping with testing

You: for your love and support and helping me get to where I am today! ❤

Thank you and Enjoy! <3

- Josh 🐸 :heart: ~
Source code(tar.gz)
Source code(zip)
d9vk-0.40.tar.gz(7.36 MB)
0.30(Oct 28, 2019)
Smol frogs be like: ᵣᵢᵦᵦᵢₜ ᵣᵢᵦᵦᵢₜ 🐸🍼

Features

Rebased upon latest DXVK 1.4.4! 🐸🎉

Improved performance when locking D3DPOOL_DEFAULT textures via. dirty tracking to avoid unnecessary waiting and copies.

Improved performance by avoiding throwing out D3DUSAGE_DYNAMIC buffers on unlock.

Allow DISCARD on non-D3DUSAGE_DYNAMIC resources, which may improve perf in some cases (mirrors native behaviour.)

Other misc. locking changes.

Implemented D3DRS_POINTSIZE, D3DRS_POINTSIZE_MIN, D3DRS_POINTSIZE_MAX, D3DRS_POINTSCALE_A, D3DRS_POINTSCALE_B, D3DRS_POINTSCALE_C, D3DRS_POINTSCALEENABLE and D3DRS_POINTSPRITEENABLE.

Implemented D3DRS_SHADEMODE.

Fixes some GameMaker titles.

Implemented shader predication (experimental).

Compressed down and improved normalization of fixed function shader keys.

Implemented a new, more efficient method of hazard tracking enabled for all titles.

Removes the now-redundant d3d9.hasHazards option.

Improved perf. by respecting access type across all of WaitForResource.

Improved perf. by checking for resource usage before before syncing with the thread in WaitForResource. (mirrors D3D11 change)

Faked AMD for CS:GO to bypass NVAPI

Note: You still cannot play CS:GO with D9VK or Proton w/ VAC due to signature checks! (You will be dumped into -insecure on launch.)

Improve perf by removing duplicate blend state sent to the CS.

Generate adapter LUIDs when Vulkan does not provide them.

Spoof device/vendor for Halo 2

Fixes it falling into an invalid render path on some systems where it'd render degenerate tris for fullscreen passes.

Fixes it showing annoying unsupported driver/device messages on startup.

Bug Fixes

Implemented d3d9.invariantPosition option.

Enabled this for Halo 2, as otherwise imprecision messes up depth test on NV.

Disabled D3DLOCK_DISCARD and D3DLOCK_NOOVERWRITE for anything other than D3DPOOL_DEFAULT pool

Fixes flickering in Halo CE.

Retry setting display mode without frequency if it fails.

Fixes Battlefield 2 CTD.

Respected projection texture stage flag in PS 1.x

Fixes Psychonauts' video projections and shadows in some older titles.

Apply given swizzle to texture sample ops.

Affects a lot of games, pretty silly oversight on my behalf.

Disabled alpha test if alpha to coverage is active.

Fixes the spoopy ghosty people in Alan Wake 2.

Zero-initialized output registers that get used

The Sims 2 sometimes only writes to .x of them, but reads .yzw and expects 0.

Fixed a bug where StretchRect would fail if the dst sample count was != 1.

Fixes Anno 1404 and Halo 2's player customizer notably.

Fixed handling of Z extent with POSITION_T, notably wrt. depth testing being enabled.

Fixes Manhunt.

Use VK_BLEND_FACTOR_ONE when with an X8 render target and wanting to get DESTALPHA/INVDESTALPHA.

Try-catch all of Present, not just the presentation.

Fixes a bug where if recreation failed the application would crash.

Fixed the return value for failed presentations.

Set the driver version to INT64_MAX rather than UINT64_MAX.

Some games, such as Halo 2, interpret this as signed data.

Fixed a bug where multiple mips were exposed in RT views causing validation errors.

Fixed the wrong view being used in the generateMipMaps call.

Default invalid/OOR blend factors to ZERO rather than ONE

Fixes lighting in Payday 2.

Notes

Please do not use wine's d3d9x or d3dcompiler with d9vk. They make invalid API calls and generate bad shaders. I cannot stress this enough.

If you are compiling with MinGW, please use the dwarf2 exception patch to improve performance.

Acknowledgements

ドイツ人 (doitsujin): for creating the base of the project, DXVK

Rhedox and CME: for helping with debugging

VKx and Frog Family Discords: for helping with testing

You: for your love and support and helping me get to where I am today! ❤

Thank you and Enjoy! <3

- Josh 🐸 :heart: ~
Source code(tar.gz)
Source code(zip)
d9vk-0.30.tar.gz(7.29 MB)
0.22(Sep 29, 2019)
Ribbit 🐸

A smaller bug fixy release (frogs eat bugs) with some important performance improvements.

Features

Implemented Set/GetSoftwareVertexProcessing

Worked around a game bug in The Sims 2 where it would try to render shadows to a A8 texture and completely mess everything up

Bug Fixes

Fixed a regression where full constant uploads were happening all the time

Fixed some games complaining about drivers being too old to run

Return D3DERR_INVALIDCALL when trying to create textures with unsupported formats

Notes

Please do not use wine's d3d9x or d3dcompiler with d9vk. They make invalid API calls and generate bad shaders. I cannot stress this enough.

If you are compiling with MinGW, please use the dwarf2 exception patch to improve performance.

Acknowledgements

ドイツ人 (doitsujin): for creating the base of the project, DXVK

Rhedox and CME: for helping with debugging

VKx and Frog Family Discords: for helping with testing

Thank you and Enjoy! <3

- Josh 🐸 :heart: ~
Source code(tar.gz)
Source code(zip)
d9vk-0.22.tar.gz(7.17 MB)
0.21(Sep 24, 2019)
I know, the pun really sucks 🍭🐸

Features

D3D9

Implemented D3DBLEND_BOTHSRCALPHA

Implemented D3DBLEND_BOTHINVSRCALPHA

Implemented locking of MSAA images with intermediate resolve (invalid behaviour in d3d9 docs, but everyone supports this)

Implemented locking of depth stencil images (and MSAA depth stencil images)

Implemented video formats YUV2 and YUVY via. compute shader

Implemented extended constant set when software vertex processing is enabled

Minor performance improvements

DXSO

Implemented TexM3x3Spec

Implemented TexM3x3VSpec

Implemented constant bounds checking (fixes vert. explosions in The Witcher 2) by @doitsujin

Fixed Function

Implemented D3DTSS_TCI_CAMERASPACEREFLECTIONVECTOR

Implemented D3DTSS_TCI_SPHEREMAP

Use unresolved arguments for fastpath decision, may improve performance

Bug Fixes

D3D9

Made ProcessVertices support optional (fixes D9VK on Haswell)

Fixed texture offsets and alignments when locking block compressed textures

Fixed a bug in UpdateSurface where block compressed textures had incorrect copy offsets

Fixed a crash when calling SetLOD on a D3DPOOL_SYSTEMMEM image

Handle degenerate present regions (fixes a crash when playing a recent version of A Hat in Time)

Set scissor to viewport (fixes minimap in GTA IV)

Removed pointer initialization in CreateVertexShader (matches native behaviour, fixes a crash in The Witcher)

Fixed the texture (and not the mip) extent being used in ColorFill on full surfaces

Fixed src/dst subresource being confused in GetRenderTargetData (fixes cars in GRID)

Report NOTAVAILABLE rather than INVALIDCALL for unavailable sample counts

Fixed uploads of partial locking of buffers -- some games go OOB

Removed unbinding for mismatching rt/ds extents (introduces regressions)

Fully wait in GetRenderTargetData for it to complete (fixes rthdribl 2.0 demo)

Fixed black walls in Serious Sam 2 (improved border color normalization)

DXSO

Always export COLOR0 and COLOR1 in vertex shaders (fixes rendering errors in some fixed func. games)

Fixed Function

Ensured normalize(0) -> 0 in fixed function (@CME42 fixes a bug in fr-030 demo)

Fixed a bug where fixed function shaders were generating incorrect keys

Handled color/alpha write special case behaviour for D3DTOP_DOTPRODUCT3

Fixed some minor validation errors and a bug where some fixed function shaders were using features not exposed in GLSL

Ignore texcoord count given to API when special transform flags are used.

Respect count for texture projection, rather than use the image count

Workaround for an Nvidia bug where they were using the incorrect value for projection

Fixed bias in D3DTOP_DOTPRODUCT3

Notes

Please do not use wine's d3d9x or d3dcompiler with d9vk. They make invalid API calls and generate bad shaders. I cannot stress this enough.

If you are compiling with MinGW, please use the dwarf2 exception patch to improve performance.

Acknowledgements

ドイツ人 (doitsujin): for creating the base of the project, DXVK

Rhedox and CME: for helping with debugging

VKx and Frog Family Discords: for helping with testing

Thank you and Enjoy! <3

- Josh 🐸 :heart: ~
Source code(tar.gz)
Source code(zip)
d9vk-0.21.tar.gz(7.17 MB)
0.20(Aug 26, 2019)
henlo 🦢

🐸🍪🐸 Frog Cookies Detected 🐸🍪🐸 🐸🍪🐸 Eat the frog cookies! 🐸🍪🐸

Features

Improved Perf

Stopped using DEVICE_LOCAL memory for shader constant buffers (@doitsujin)

Misc. performance improvements

Skip waiting for D3DLOCK_READONLY on buffers

Optimized UndirtySamplers

General

Implemented d3d9.samplerAnisotropy option

Implemented d3d9.maxAvailableMemory option

Implemented d3d9.floatEmulation option

Implemented GetRasterStatus (for Undertale)

Cache monitor info

Implemented ProcessVertices (Software Vertex Processing)

Uses a geometry shader that emits no vertices and does buffer writes

Correctly implement D3DMULTISAMPLE_NONMASKABLE

Implemented TexBem, TexM3x2Tex and TexM3x3Tex

Enabled lenient clear for some UE3 titles

Otherwise they don't end up clearing their full RT due to viewport rules and random alignment

Implement undocumented managed pool for D3D9Ex

Implement async. present

Implemented presentation regions

Bug Fixes

Ignore lock flag DISCARD when NOOVERWRITE/not a dynamic resource is specified

Improved nested locking behaviour and other locking fixes

Fixed systemmem texture wait behaviour

Ignore partial discards for textures

Fixed a bug setting dirty vertex/pixel shader flag in SetTextureStageState

Improved memory tracking behaviour

Fixed ResolveZ implementation

Fixed some blending behaviour in fixed function pipeline

Improved app compatibility in CheckDeviceFormatConversion

New Fixed Function Support!

Implemented fixed function lighting

Implemented fixed function frog fog (🐸🌁🌫)

Lots more (eg. texcoord offset, tci_cameraspaceposition, specular magic!)

There is a lot more that wasn't mentioned above too, but was either bugs fixed that didn't affect the previous release or new behaviour or too minor to mention (I actually want to release this and not spend all day writing a changelog 🐸).

Notes

Please do not use wine's d3d9x or d3dcompiler with d9vk. They make invalid API calls and generate bad shaders. I cannot stress this enough.

If you are compiling with MinGW, please use the dwarf2 exception patch to improve performance.

Acknowledgements

ドイツ人 (doitsujin): for creating the base of the project, DXVK

Rhedox and CME: for helping with debugging

VKx and Frog Family Discords: for helping with testing

Thank you and Enjoy! <3

- Josh 🐸 :heart: ~
Source code(tar.gz)
Source code(zip)
d9vk-0.20.tar.gz(6.97 MB)
0.13f(Jul 15, 2019)
Croak, here to release 0.13f. (the f stands for 🐸) This is a release has come a lot sooner than usual but still has quite a lot of new features and bug fixes.

Enjoy! 😊

Features

New General API Stuff

Properly implement queries for format support w/ respective usages

Implement D3DOK_NOAUTOGEN return code for CreateTexture functions

Quietened a lot of stubs that don't matter

Improved return codes to not advertise things we don't support

Refactored adapter code, w/ misc. cleanup and safer code

Very basic border color support

Fixes shadows in some games that use inverse blending + border of ~ 1,1,1,1

Improved AllocUpBuffer behaviour to reduce memory fragmentation (@doitsujin)

New Fixed Function Support!

Implemented D3DTSS_TEXCOORDINDEX

New Shader Support!

Implement DemoteToHelperInvocation for NV/Intel for Discards

Implemented sign and bias modifiers

Implemented TexReg{Ar,Gb,Rgb} ops

Implemented TexDp3Tex

Implemented Crs

Bug Fixes

D3D9

Removed support for R8G8B8 (not supported anywhere natively anymore, and causes issues in newer games that use it incorrectly

Add a low weight implicit flush to UpdateTexture

Can improve loading times in some games where we used to stall on some uploads (eg. Sims 2)

Check mip level range in GetCubeMapSurface (@K0bin)

DXSO (Shader Fixes)

Saturated diffuse and specular color on PS 1.x and 2.x (COLOR0 and COLOR1 outputs in VS)

Clamped constants to -1.0f and 1.0f in PS 1.x shaders

Corrected Dz and Dw implementation

Fixed texcoord/texcrd op across all shader models (@Joshua-Ashton & @K0bin)

Fixed implicit samplers for indices > 0

Notes

Please do not use wine's d3d9x or d3dcompiler with d9vk. They make invalid API calls and generate bad shaders. I cannot stress this enough.

If you are compiling with MinGW, please use the dwarf2 exception patch to improve performance.

Acknowledgements

ドイツ人 (doitsujin): for creating the base of the project, DXVK

Rhedox and CME: for helping with debugging

VKx and Frog Family Discords: for helping with testing

Thank you and Enjoy! <3

- Josh 🐸 :heart: ~
Source code(tar.gz)
Source code(zip)
d9vk-0.13f.tar.gz(6.60 MB)
0.13(Jul 9, 2019)
Ribbit, here is 0.13 for you all. It's been a while since we marked a stable release 🐸

🐸🐸 Hypnotoad commands you to download! 🐸🐸

Features

Implemented fixed function

Includes everything except lighting, texcoord transforms, spheremap texcoords and constant texture arg.

Works well enough for most games if you can deal with with them being fullbright.

Better fallback for D16_S8, going to D24_S8 if it is not supported rather than D32

Implemented GetGammaRamp

Implemented ColorFill

Added a way to workaround resource hazards

d3d9.hasHazards = True to enable hazard checks -- only necessary on AMD

Implemented disjointed timestamp queries

Implemented Hardware Cursor support (for games like old WoW and Guild 2)

Implemented implicit samplers for PS 1.x (ie. cubemaps/volume textures)

Respect ordinal indices for exports of the DLL (may help with some anti cheats or older games)

Better Performance

Use a push constant for the Alpha Test Reference

Only dirty a clip plane if it is enabled

Avoid redundant vertex buffer changes (@doitsujin)

Offload input layout creation to command stream (@doitsujin)

Only update input assembly state if necessary (@doitsujin)

Avoid referencing dxvk device in BindSamplers

Constant uploading optimizations (via. ranges & dirtying)

Implemented async. presentation

Avoid some unnecessary syncs with CS thread

Use new DXVK signals as frame sync events

Enabled early discard for ACO compiler

Bug Fixes

D3D9

Clamp reference counting, avoid it wrapping around

Fixes a crash in Star Wars: The Force Unleashed

Use a private reference for auto depth stencil

Fixes another crash in Star Wars: The Force Unleashed

Normalized floating point inputs given to us (ie. remove NaNs)

Fixes a glowy man in Mass Effect: 2

Fixed a bug in GDI code where things would not be updated after being modified

Fixed the range of returned elements in GetDeclaration

Fixes a bug in Assassin's Creed

Correct mip view indices for framebuffer

Fixes black rendering in Lego Star Wars Saga

Normalize mipmapLodBias in range -15.0f to 15.0f and round to nearest .5

Avoids invalid state and stops runaway pipeline creation for games that using mip fading (a better solution instead of rounding would be good here)

Fix fast path for StretchRect occasionally firing when it shouldn't

Fixes wacky colours in GTA: SA

Use BC2 for DXT2 rather than BC1 which was incorrect

Fix crash on SWVP shaders

Correct range check in SetRenderState to mirror native behaviour

Fixes crash in SWTFU

Disable the READONLY lock flag for games in the Risen series

Fixes black rendering as they use it incorrectly

DXSO (Shaders)

Fixed a bug when parsing shaders that used relative indices for control flow ops.

Account for header token in bytecode size

Fixes games that readback their own shaders

Correct EXPP implementation

Fixes spots in HDR in TESIV: Oblivion, Fallout Series

Correct LIT implementation

Notes

Please do not use wine's d3d9x or d3dcompiler with d9vk. They make invalid API calls and generate bad shaders. I cannot stress this enough.

If you are compiling with MinGW, please use the dwarf2 exception patch to improve performance.

Acknowledgements

ドイツ人 (doitsujin): for creating the base of the project, DXVK

Rhedox and CME: for helping with debugging

VKx and Frog Family Discords: for helping with testing

Thank you and Enjoy! <3

- Josh 🐸 :heart: ~
Source code(tar.gz)
Source code(zip)
d9vk-0.13.tar.gz(6.58 MB)
0.12(May 29, 2019)
Hi! I'm happy and pleased to release version 0.12 for all you froggos out there :frog: :heart: :smile:

Hope you enjoy, ribbit! :frog:

Features

Improved Performance

Entirely rewritten texture code

Should be faster in every instance and correct some memory errors.

SystemMem textures are system-mem only and have no image, copies to real textures (ie. DEFAULT) are done when needed, reducing video memory and improving performance.

Refactored and rewritten presentation and swapchain code

Includes support for vsync + proper fullscreen w/ mode setting. Fixes other issues also.

Contiguous surface allocation

Improves stuttering in games which spam and abuse CreateTexture (eg. A Hat in Time, League of Legends)

Improve determining when we should wait on textures.

Optimized image views by avoiding creating duplicates and instead dually referencing existing ones if SRGB formats do not exist for the given D3D9 format.

New Features

Build

You can now choose what modules to build, if you so desire.

Queries

Minor query optimisations

Implement D3DQUERYTYPE_VERTEXSTATS

Alpha to Coverage

Supports both the AMD/NV driver hacks

Fixes hair in Final Fantasy [some roman numeral].

May improve appearance of other games also

Cursor Position Setting

The cursor position is correctly set/flushed when the application desires (immediate or at Present time)

Partial support for Presentation Rects

Fixes the fact that A Hat in Time doesn't recreate its backbuffer when making the resolution go down. (pls fix devs :heart:)

Resolve Z

The AMD resolve-z hack has been implemented.

Initial Data

Added support for CreateTexture InitialData in the shared handle for D3DPOOL_SYSTEMMEM.

Fixes CS:GO

GDI Interop

There is now experimental support for GetDC/ReleaseDC.

Version Info

Correct version info is now reported in the DLL, this should satisfy some anti-cheats.

GetStreamSourceFreq got implemented (by Rhedox)

Basic support for D3D9Ex

Bug Fixes

D3D9

We now hold a reference to the auto depth stencil created by device Reset, some applications depended on this (ie. Gothic III)

Minor query fixes

Fixes for initializing both regular and lazy alloced resources

Fixes "punch card" issue in The Sims 3

Fix for stride returned for ATI1/2 formats not respecting Mip

Don't apply view sample swizzle on depth views (fixes some validation errors)

Fixed vsync + fullscreen issues

Corrected some cursor bugs where it would vanish in, for eg. GW2

In theory, some OOM issues may be corrected.

Fixed R8G8B8 fixup not working properly in some instances.

Fix mode order being incorrect.

Some extra undocumented interfaces are now stubbed and exposed (ie. Direct3DCreateShaderValidator9, PGSPError, etc)

Corrected refcounting for surfaces and fixed a bug where sometimes invalid memory would be used/deleted there.

Fixed a bug where UpdateSurface would pass an incorrect extent to Vk.

Fixed a bug where RestoreDisplayMode would fail

Fixed FP precision being set invalidly on x64 MSVC builds.

Fixes for multisample state not being bound in some instances causing no rendering.

DXSO (Shaders)

Fixed a GPU hang in some games on RADV. This has been fixed with discard deferral.

Notes

Please do not use wine's d3d9x or d3dcompiler with d9vk. They make invalid API calls and generate bad shaders. I cannot stress this enough.

If you are compiling with MinGW, please use the dwarf2 exception patch to improve performance.

Acknowledgements

ドイツ人 (doitsujin): for creating the base of the project, DXVK

Rhedox and CME: for helping with debugging

VKx and Frog Family Discords: for helping with testing

Thank you and Enjoy! <3

- Josh 🐸 :heart: ~
Source code(tar.gz)
Source code(zip)
d9vk-0.12.tar.gz(6.46 MB)
0.11(May 12, 2019)
hi im release 0.11 now enjoy 🐸 i called it poison dart because thats like a frog thing isnt it wahoo

Features

Improved Performance

Rewritten buffer code

Should be faster in every instance and correct some memory errors.

Flushes

Flush aggressively when rt of index 0 changes.

No longer flush inappropriately on some copies.

Mirror D3D11 flush behaviour

Should improve some scenarios where a sync is involved.

Minor query changes.

Defer framebuffer binding until we are about to draw.

Avoids needless rebinds saturating CS thread whenever a single RT/DS changes.

Implemented partial clears with respect to viewport/stencil and a fastpath if the whole rendertarget is cleared.

Fixes shadows in A Hat in Time (1)

Support for cube render target/depth stencils

Fixes flickering water in TESV: Skyrim

Bug Fixes

D3D9

Implement memory "tracking" and report OOM errors correctly back to the application.

Respect SRGBWRITE when Clear is called for the color.

Fixed things being invisible in some games due to vertex texturing being broken (they were always being depth compared)

DXSO (Shaders)

Fix incorrect index being taken out of the bool bitfield in the shader

Fixes shadows in A Hat in Time (2)

Correct projected textures (texldp, texProj in HLSL)

Correct SinCos implementation

Fixes bad colours/incorrect textures in some games.

Correct Pointsize

Slightly better support for SM1 shaders

Fixed incorrect swizzle on address register due to typo

Implemented SM1 float "bitshifting"

Notes

Please do not use wine's d3d9x or d3dcompiler with d9vk. They make invalid API calls and generate bad shaders. I cannot stress this enough.

If you are compiling with MinGW, please use the dwarf2 exception patch to improve performance.

Acknowledgements

ドイツ人 (doitsujin): for creating the base of the project, DXVK

Rhedox and CME: for helping with debugging

VKx and Frog Family Discords: for helping with testing

Thank you and Enjoy! <3

- Josh 🐸

Edit

I've re-uploaded the release here with a corrected RELEASE version and naming scheme.
Source code(tar.gz)
Source code(zip)
d9vk-0.11.tar.gz(6.45 MB)
0.10(May 8, 2019)
I am pleased and happy to announce the first release of D9VK -- Version 0.10!

It's beginning to run a large amount of modern (ie. Shader Model 2 and 3) D3D9 games fairly well, so I figured I should probably start shipping releases now that we are at this stage.

There are still a few missing features (Shader Model 1 support is incomplete -- as well as fixed function.)

Hopefully you'll try it out and it'll work. If it doesn't please do report an issue!

Notes

Please do not use wine's d3d9x or d3dcompiler with d9vk. They make invalid API calls and generate bad shaders. I cannot stress this enough.

Acknowledgements

ドイツ人 (doitsujin): for creating the base of the project, DXVK

Rhedox and CME: for helping with debugging

VKx and Frog Family Discords: for helping with testing

Thank you and Enjoy! <3

- Josh 🐸
Source code(tar.gz)
Source code(zip)
d9vk-0.10.tar.gz(6.26 MB)

A Direct3D9 to Vulkan layer using the DXVK backend. [Upstreamed to DXVK]

Related tags

Overview

This work has been upstreamed and is continuing development there

This repo is only open for the remaining issues on the tracker

DXVK

How to use

Build instructions

Requirements:

Building DLLs

The simple way

Compiling manually

Notes on Vulkan drivers

Online multi-player games

HUD

Device filter

State cache

Debugging

Troubleshooting

Comments

Software information

System information

Software information

System information

Apitrace file(s)

Log files

Software information

System information

Apitrace file(s)

Log files

Software information

System information

Apitrace file(s)

Log files

Software information

System information

Apitrace file(s)

Log files

Software information

System information

Apitrace file(s)

Log files

Software information

System information

Apitrace file(s)

Log files:

Software information

System information

Log (with mesa 19.0.3)

System information

Apitrace file(s)

Log files

Software information

System information

Apitrace file(s)

Log files

Software information

System information

Log files

System information

Log files

Software information

System information

Apitrace file(s)

Log files

Software information

System information

Apitrace file (made using WineD3D)

Log files

Releases(0.40.1)

0.40.1(Dec 15, 2019)

Bug Fixes

Notes

Acknowledgements

Thank you and Enjoy! <3

- Josh 🐸 :heart: ~

0.40(Dec 14, 2019)

Features

Bug Fixes

Notes
