Example code for the research paper "Masked Software Occlusion Culling"; implements an efficient alternative to the hierarchical depth buffer algorithm.



This code accompanies the research paper "Masked Software Occlusion Culling", and implements an efficient alternative to the hierarchical depth buffer algorithm. Our algorithm decouples depth values and coverage, and operates directly on the hierarchical depth buffer. It lets us efficiently parallelize both coverage computations and hierarchical depth buffer updates.

Update May 2018

Added the ability to merge 2 depth buffers, this allows both an alterative method for parallelizing buffer creation and a way to reduce silhouette bleed when input data cannot be roughly sorted from front to back, for example rendering large terrain patches with foreground occluders in an open world game engine.


This code is mainly optimized for AVX capable CPUs. However, we also provide SSE 4.1 and SSE 2 implementations for backwards compatibility. The appropriate implementation will be chosen during run-time based on the CPU's capabilities.

Notes on build time

The code is optimized for runtime performance and may require a long time to compile due to heavy code inlining. This can be worked around by compiling a library file. An alternative solution is to disable whole program optimizations for the MaskedOcclusionCulling.cpp, MaskedOcclusionCullingAVX2.cpp and MaskedOcclusionCullingAVX512.cpp files. It does not impact runtime performance, but greatly reduces the time of program linking.

Notes on coordinate systems and winding

Most inputs are given as clip space (x,y,w) coordinates assuming the same right handed coordinate system as used by DirectX and OpenGL (x positive right, y positive up and w positive in the view direction). Note that we use the clip space w coordinate for depth and disregard the z coordinate. Internally our masked hierarchical depth buffer stores depth = 1 / w.

The TestRect() function is an exception and instead accepts normalized device coordinates (NDC), (x' = x/w, y' = y/w), where the visible screen region maps to the range [-1,1] for x' and y' (x positive right and y positive up). Again, this is consistent with both DirectX and OpenGL behavior.

By default, the screen space coordinate system used internally to access our hierarchical depth buffer follows DirectX conventions (y positive down), which is not consistent with OpenGL (y positive up). This can be configured by changing the USE_D3D define. The screen space coordinate system affects the layout of the buffer returned by the ComputePixelDepthBuffer() function, scissor rectangles (which are specified in screen space coordinates), and rasterization tie-breaker rules if PRECISE_COVERAGE is enabled.

API / Tutorial

We have made an effort to keep the API as simple and minimal as possible. The rendering functions are quite similar to submitting DirectX or OpenGL drawcalls and we hope they will feel natural to anyone with graphics programming experience. In the following we will use the example project as a tutorial to showcase the API. Please refer to the documentation in the header file for further details.


We begin by creating a new instance of the occlusion culling object. The object is created using the static Create() function rather than a standard constructor, and can be destroyed using the Destroy() function. The reason for using the factory Create()/Destroy() design pattern is that we want to support custom (aligned) memory allocators, and that the library choses either the AVX-512, AVX or SSE implementation based on the CPU's capabilities.

MaskedOcclusionCulling *moc = MaskedOcclusionCulling::Create();



The created object is empty and has no hierarchical depth buffer attached, so we must first allocate a buffer using the SetResolution() function. This function can also be used later to resize the hierarchical depth buffer, causing it to be re-allocated. Note that the resolution width must be a multiple of 8, and the height a multiple of 4. This is a limitation of the occlusion culling algorithm.

int width = 1920;
int height = 1080;
moc.SetResolution(width, height);   // Set full HD resolution

After setting the resolution we can start rendering occluders and performing occlusion queries. We must first clear the hierarchical depth buffer

// Clear hierarchical depth buffer to far depth

Optional The SetNearClipPlane() function can be used to configure the distance to the near clipping plane to make the occlusion culling renderer match your DX/GL renderer. The default value for the near plane is 0 which should work as expected unless your application relies on having onscreen geometry clipped by the near plane.

float nearClipDist = 1.0f;
moc.SetNearClipPlane(nearClipDist); // Set near clipping dist (optional)

Occluder rendering

The RenderTriangles() function renders triangle meshes to the hierarchical depth buffer. Similar to DirectX/OpenGL, meshes are constructed from a vertex array and an triangle index array. By default, the vertices are given as (x,y,z,w) floating point clip space coordinates, but the z-coordinate is ignored and instead we use depth = 1 / w. We expose a TransformVertices() utility function to transform vertices from (x,y,z,1) model/world space to (x,y,z,w) clip space, but you can use your own transform code as well. For more information on the TransformVertices() function, please refer to the documentaiton in the header file.

The triangle index array is identical to a DirectX or OpenGL triangle list and connects vertices to form triangles. Every three indices in the array form a new triangle, so the size of the array must be a multiple of 3. Note that we only support triangle lists, and we currently have no plans on supporting other primitives such as strips or fans.

struct ClipSpaceVertex { float x, y, z, w; };

// Create an example triangle. The z component of each vertex is not used by the
// occlusion culling system.
ClipspaceVertex triVerts[] = { { 5, 0, 0, 10 }, { 30, 0, 0, 20 }, { 10, 50, 0, 40 } };
unsigned int triIndices[] = { 0, 1, 2 };
unsigned int nTris = 1;

// Render an example triangle
moc.RenderTriangles(triVerts, triIndices, nTris);

Transform It is possible to include a transform when calling RenderTriangles(), by passing the modelToClipSpace parameter. This is equivalent to calling TransformVertices(), followed by RenderTriangles(), but performing the transform as shown in the example below typically leads to better performance.

// Example matrix swapping the x and y coordinates
float swapxyMatrix[4][4] = {

// Render triangle with transform.
moc.RenderTriangles(triVerts, triIndices, nTris, swapxyMatrix);

Backface Culling By default, clockwise winded triangles are considered backfacing and are culled when rasterizing occluders. However, you can configure the RenderTriangles() function to backface cull either clockwise or counter-clockwise winded triangles, or to disable backface culling for two-sided rendering.

// A clockwise winded (normally backfacing) triangle
ClipspaceVertex cwTriVerts[] = { { 7, -7, 0, 20 },{ 7.5, -7, 0, 20 },{ 7, -7.5, 0, 20 } };
unsigned int cwTriIndices[] = { 0, 1, 2 };

// Render with counter-clockwise backface culling, the triangle is drawn
moc->RenderTriangles((float*)cwTriVerts, cwTriIndices, 1, nullptr, BACKFACE_CCW);

The rasterization code only handles counter-clockwise winded triangles, so configurable backface culling is implemented by re-winding clockwise winded triangles on the fly. Therefore, other culling modes than BACKFACE_CW may decrease performance slightly.

Clip Flags RenderTriangles() accepts an additional parameter to optimize polygon clipping. The calling application may disable any clipping plane if it can guarantee that the mesh does not intersect said clipping plane. In the example below we have a quad which is entirely on screen, and we can disable all clipping planes. Warning it is unsafe to incorrectly disable clipping planes and this may cause the program to crash or perform out of bounds memory accesses. Consider this a power user feature (use CLIP_PLANE_ALL to clip against the full frustum when in doubt).

// Create a quad completely within the view frustum
ClipspaceVertex quadVerts[]
	= { { -150, -150, 0, 200 },{ -10, -65, 0, 75 },{ 0, 0, 0, 20 },{ -40, 10, 0, 50 } };
unsigned int quadIndices[] = { 0, 1, 2, 0, 2, 3 };
unsigned int nTris = 2;

// Render the quad. As an optimization, indicate that clipping is not required
moc.RenderTriangles((float*)quadVerts, quadIndices, nTris, nullptr, BACKFACE_CW, CLIP_PLANE_NONE);

Vertex Storage Layout Finally, the RenderTriangles() supports configurable vertex storage layout. The code so far has used an array of structs (AoS) layout based on the ClipSpaceVertex struct, and this is the default behaviour. You may use the VertexLayout struct to configure the memory layout of the vertex data. Note that the vertex pointer passed to the RenderTriangles() should point at the x coordinate of the first vertex, so there is no x coordinate offset specified in the struct.

struct VertexLayout
	int mStride;  // Stride between vertices
	int mOffsetY; // Offset to vertex y coordinate
	int mOffsetW; // Offset to vertex w coordinate

For example, you can configure a struct of arrays (SoA) layout as follows

// A triangle specified on struct of arrays (SoA) form
float SoAVerts[] = {
	 10, 10,   7, // x-coordinates
	-10, -7, -10, // y-coordinates
	 10, 10,  10  // w-coordinates

// Set vertex layout (stride, y offset, w offset)
VertexLayout SoAVertexLayout(sizeof(float), 3 * sizeof(float), 6 * sizeof(float));

// Render triangle with SoA layout
moc.RenderTriangles((float*)SoAVerts, triIndices, 1, nullptr, BACKFACE_CW, CLIP_PLANE_ALL, SoAVertexLayout);

Vertex layout may affect performance. We have seen no large performance impact when using either SoA or AoS layout, but generally speaking the vertex position data should be packed as compactly into memory as possible to minimize number of cache misses. It is, for example, not advicable to bundle vertex position data together with normals, texture coordinates, etc. and using a large stride.

Occlusion queries

After rendering a few occluder meshes you can begin to perform occlusion queries. There are two functions for occlusion queries, called TestTriangles() and TestRect(). The TestTriangles() function is identical to RenderTriangles() with the exception being that it performs an occlusion query and does not update the hierarchical depth buffer. The result of the occlusion query is returned as an enum, which indicates if the triangles are VISIBLE, OCCLUDED, or were VIEW_CULLED. Here, VIEW_CULLED means that all triangles were either frustum or back face culling, so no occlusion culling test had to be performed.

// A triangle that is partly, but not completely, overlapped by the quad rendered before
ClipspaceVertex oqTriVerts[] = { { 0, 50, 0, 200 },{ -60, -60, 0, 200 },{ 20, -40, 0, 200 } };
unsigned int oqTriIndices[] = { 0, 1, 2 };
unsigned int nTris = 1;

// Perform an occlusion query. The triangle is visible and the query should return VISIBLE
CullingResult result = moc.TestTriangles((float*)oqTriVerts, oqTriIndices, nTris);

The TestRect() function performs an occlusion query for a rectangular screen space region with a given depth. It can be used to, for example, quickly test the projected bounding box of an object to determine if the entire object is visible or not. The function is considerably faster than TestTriangles() becuase it does not require input assembly, clipping, or triangle rasterization. The queries are typically less accurate as screen space bounding rectangles tend to grow quite large, but we've personally seen best overall performance using this type of culling.

// Perform an occlusion query testing if a rectangle is visible. The rectangle is completely
// behind the previously drawn quad, so the query should indicate that it's occluded
result = moc.TestRect(-0.6f, -0.6f, -0.4f, -0.4f, 100);

Unlike the other functions the input to TestRect() is normalized device coordinates (NDC). Normalized device coordinates are projected clip space coordinates (x' = x/w, y' = y/w) and the visible screen maps to the range [-1,1] for both the x' and y' coordinate. The w coordinate is still given in clip space, however. It is up to the application to compute projected bounding rectangles from the object's bounding shapes.

Debugging and visualization

We expose a utility function, ComputePixelDepthBuffer() that can be used to visualize the hierarchical depth buffer used internally by the occlusion culling system. The function fills in a complete per-pixel depth buffer, but the internal representation is hierarchical with just two depth values and a mask stored per tile. It is not reasonable to expect the image to completely match the exact depth buffer, and you may notice some areas where backrgound objects leak through the foreground. Leakage is part of the algorithm (and one reason for the high performance), and we have not found it to be problematic. However, if you experience issues due to leakage you may want to disable the QUICK_MASK define, described in more detail in the section on hierarchical depth buffer updates.

// Compute a per pixel depth buffer from the hierarchical depth buffer, used for visualization.
float *perPixelZBuffer = new float[width * height];

We also support basic instrumentation to help with profiling and debugging. By defining ENABLE_STATS in the header file, the occlusion culling code will gather statistics about the number of occluders rendered and occlusion queries performed. For more details about the statistics, see the OcclusionCullingStatistics struct. The statistics can be queried using the GetStatistics() function, which will simply return a zeroed struct if ENABLE_STATS is not defined. Note that instrumentation reduces performance somewhat and should generally be disabled in release builds.

OcclusionCullingStatistics stats = moc.GetStatistics();

Memory management

As shown in the example below, you may optionally provide callback functions for allocating and freeing memory when creating a MaskedOcclusionCulling object. The functions must support aligned allocations.

void *alignedAllocCallback(size_t alignment, size_t size)

void alignedFreeCallback(void *ptr)

MaskedOcclusionCulling *moc = MaskedOcclusionCulling::Create(alignedAllocCallback, alignedFreeCallback);

Hierarchical depth buffer update algorithm and render order

The library contains two update algorithms / heuristics for the hierarchical depth buffer, one focused on speed and one focused on accuracy. The active algorithm can be configured using the QUICK_MASK define. Setting the define (default) enables algorithm is described in the research paper "Masked Software Occlusion Culling", which has a good balance between low leakage and good performance. Not defining QUICK_MASK enables the mergine heuristic used in the paper "Masked Depth Culling for Graphics Hardware". It is more accurate, with less leakage, but also has lower performance.

If you experience problems due to leakage you may want to use the more accurate update algorithm. However, rendering order can also affect the quality of the hierarchical depth buffer, with the best order being rendering objects front-to-back. We perform early depth culling tests during occluder

rendering, so rendering in front-to-back order will not only improve quality, but also greatly improve performance of occluder rendering. If your scene is stored in a hierarchical data structure, it is often possible to modify the traversal algorithm to traverse nodes in approximate front-to-back order, see the research paper "Masked Software Occlusion Culling" for an example.

Interleaving occluder rendering and occlusion queries

The library supports light weight switching between occluder rendering and occlusion queries. While it is still possible to do occlusion culling as a standard two pass algorithm (first render all occluders, then perform all queries) it is typically beneficial to interleave occluder rendering with queries.

This is especially powerful when rendering objects in front-to-back order. After drawing the first few occluder triangles, you can start performing occlusion queries, and if the occlusion query indicate that an object is occluded there is no need to draw the occluder mesh for that object. This can greatly improve the performance of the occlusion culling pass in itself. As described in further detail in the research paper "Masked Software Occlusion Culling", this may be used to perform early exits in BVH traversal code.

Rasterization precision

The library supports high precision rasterization through Bresenham interpolation, and this may be enabled by changing the PRECISE_COVERAGE define in the header file. The high precision rasterizer is somewhat slower (5-15%) than using the default rasterizer, but is compliant with DirectX 11 and OpenGL rasterization rules. We have empirically verified it on a large set of randomly generated on-screen triangles. While there still may be differences to GPU rasterization due to clipping or vertex transform precision differences, we have not noticed any differences in rasterized coverage in our test scenes. Note that tie breaker rules and vertex rounding behaves differently between DirectX and OpenGL due to the direction of the screen space Y axis. The USE_D3D define (enabled by default) can be used to toggle between DirectX or OpenGL behaviour.

Multi-threading and binned rendering

Multi-threading is supported through a binning rasterizer. The MaskedOcclusionCulling class exposes two functions, BinTriangles() and RenderTrilist() that may be used to perform binning, and render all triangles assigned to a bin. Using binned rasterization makes it simple to guarantee that no two threads are accessing the same part of the framebuffer, as rendering is limited to a particular bin, or region of the screen.

Binned rendering starts by performing geometry processing (primitive assembly, vertex transform, clipping, and projection) followed by a binning step, where triangles are written to all bins they overlap. This is performed using the BinTriangles() function, which is very similar to the RenderTriangles() function, but provides some additional parameters for specifying the number of bins the screen is split into. The calling application also needs to pass a pointer to an array of TriList object, with one instance per bin. Each TriList object points to a "scratchpad" memory buffer, and all triangles overlapping that bin will be written to the buffer.

const int binsW = 4;
const int binsH = 4;

float *dataBuffer = new float[binsW*BinsH*1024*3*3]; // Allocate storage for 1k triangles in each trilist
TriList *triLists  = new TriList[binsW*binsH];       // Allocate trilists for 4x4 = 16 bins
for (int i = 0; i < binsW*BinsH; ++i)
	triLists[i].mNumTriangles = 1024; // triangle list capacity
	triLists[i].mTriIdx = 0; // Set triangle write pointer to first element
	triLists[i].mData = dataBuffer + i*1024*1024;

// Perform geometry processing and write triangles to the triLists of all bins they overlap.
moc.BinTriangles(triVerts, triIndices, nTris, triLists, binsW, binsW);

After generating the triangle lists for each bin, the triangles may be rendered using the RenderTrilist() function and the rendering region should be limited using a scissor rectangle. It should be noted that the BinTriangles() function makes assumptions on the size of the bins, and the calling application must therefore always compute the scissor region of each bin, relying on the ComputeBinWidthHeight() utility function as shown in the example below. Note that the scissor rectangle is specified in screen space coordinates which depends on the USE_D3D define.

unsigned int binWidth, binHeight;
moc.ComputeBinWidthHeight(mBinsW, mBinsH, binWidth, binHeight);

for (int by = 0; by < binsH; ++by)
	for (int bx = 0; bx < binsW ; ++bx)
		// Compute scissor rectangle that matches the one assumed by BinTriangles()
		// note that the ScissorRect is specified in pixel coordinates, with (0,0)
		// being the bottom left corner
		ScissorRect binRect;
		binRect.minX = bx*binWidth;
		binRect.maxX = bx + 1 == binsW ? screenWidth : (bx + 1) * binWidth;
		binRect.minY = by*binHeight;
		binRect.maxY = by + 1 == binsH ? screenHeight : (by + 1) * binHeight;

		// Render all triangles overlapping the current bin.
		moc.RenderTrilist(triLists[bx + by*4], &binRect);

Multi-threading example

This library includes a multi-threading example in the CullingThreadpool class. The class interface is similar to that of MaskedOcclusionCulling, but occluder rendering is performed asynchronously. Calling the CullingThreadpool::RenderTriangles() function adds a render job to a command queue and immediately return to the calling thread, rather than immediately performing the rendering work. Internally, the class uses the BinTriangles() and RenderTrilist() functions to bin all triangles of the CullingThreadpool::RenderTriangles() call, and distribute the tiles. At any time, there may be a number of binning jobs, and tile rendering jobs unprocessed, and the scheduler picks the most urgent job and process it first. If a thread runs out of available jobs, task stealing is used as a means of improving load-balancing.

The occlusion query functions CullingThreadpool::TestTriangles() and CullingThreadpool::TestRect() immediately return the result of the query. However, the query depends on the contents of the hierarchical depth buffer you may need to wait for the worker threads to finish to make sure the query is performed on the most up to date version of the buffer, this can be accomplished by calling CullingThreadpool::Flush(). It is not always necessary to work with the most up to date version of the hierarchical depth buffer for a query. While the result may be incorrect, it is still always conservative in that occluded objects may be classified as visible, but not the other way around. Since the CullingThreadpool::Flush() causes a wait it may be beneficial to work against a slightly out of date version of the hierarchical depth buffer if your application will cause a lot of flushes. We found this particularly true when implementing threading in our interleaved BVH traversal algorithm (see the "Masked Software Occlusion Culling" paper) where each BVH traversal step is based on the outcome of an occlusion query interleaved with occluder rendering for the BVH-leaves.

The CullingThreadpool class was written as an example and not the de-facto threading approach. In some cases we believe it is possible to improve performance further by threading occlusion queries, or thread the entire occlusion culling system, including scene graph traversal. However, it does provide a simple means of enabling multi-threading in a traditional single threaded application as the APIs is very similar to the MaskedOcclusionCulling class, and may be called from a single threaded application. As previously mentioned we integrated this implementation in our interleaved BVH traversal algorithm (see the "Masked Software Occlusion Culling" paper) and noted speedup of roughly 3x, running on four threads, compared to our previous single threaded implementation.


The code has been reworked to support more platforms and compilers, such as Intel C++ Compiler, G++ and LLVM/Clang. The original Visual Studio 2015 projects remain and works with both ICC and Microsoft's compilers. Other compilers are supported through CMake. See the CMakeLists.txt files in the Example and FillrateTest folders. You can use CMake to generate a Visual Studio project for Clang on Windows:

md <path to library>\Example\Clang
cd <path to library>\Example\Clang
cmake -G"Visual Studio 14 2015 Win64" -T"LLVM-vs2014" ..

or build the library with G++/Clang on linux systems (the D3DValidate sample only works on Windows as it relies on Direct 3D)

mkdir <path to library>/Example/Release
cd <path to library>/Example/Release
cmake -DCMAKE_BUILD_TYPE=Release ..

Note that AVX-512 support is only experimental at the moment, and has only been verified through Intel SDE. If using the original visual studio project, you need to "opt in" for AVX-512 support by setting #define USE_AVX512 1. When building with CMake you can enable AVX support using the -DUSE_AVX512=ON option:

cmake -DUSE_AVX512=ON -G"Visual Studio 14 2015 Win64" -T"LLVM-vs2014" ..

Version History

  • Version 1.4:
    • Added support for merging 2 depth buffers as detailed in GDC 2018 presenation.
    • Fixed Profiling counters to be thread safe removing a race condition when runing the CullingThreadpool class.
  • Version 1.3:
    • Experimental: Added support for AVX-512 capable CPUs. Currently only verified through emulator.
    • Added multiplatform support. Code now compiles on Visual C++ Compiler, Intel C++ Compiler, GCC, and Clang.
    • Added configurable backface culling, to support two-sided occluder rendering.
  • Version 1.2:
    • Added support for threading, through a binning rasterizer. The CullingThreadpool class implements an example multi-threaded task system with a very similar API to the MaskedOcclusionCullingclass.
    • Added support for higher precision rasterization, with DirectX and OpenGL compliant rasterization rules.
    • Note: The default screen space coordinate system has been changed from OpenGL to DirectX conventions. If you upgrade from an older version of the library this will flip the y coordinate of scissor boxes and the images returned by ComputePixelDepthBuffer(). Disabling the USE_D3D define changes back to OpenGL conventions.
  • Version 1.1:
    • Added support for SSE4.1 and SSE2 capable CPUs for backwards compatibility. The SSE versions must emulate some operations using simpler instructions, and are therefore less efficient, with the SSE2 version having the lowest performance.
  • Version 1.0:
    • Initial revision, only support for AVX2 capable CPUs

Differences to the research paper

This code does not exactly match implementation used in "Masked Software Occlusion Culling", and performance may vary slightly from what is presented in the research paper. We aimed for making the API as simple as possible and have removed many limitations, in particular requirements on input data being aligned to SIMD boundaries. This affects performance slightly in both directions. Unaligned loads and gathers are more costly, but unaligned data may be packed more efficiently in memory leading to fewer cache misses.

License agreement

See the Apache 2.0 license.txt for full license agreement details.


This software is subject to the U.S. Export Administration Regulations and other U.S. law, and may not be exported or re-exported to certain countries (Cuba, Iran, North Korea, Sudan, and Syria) or to persons or entities prohibited from receiving U.S. exports (including Denied Parties, Specially Designated Nationals, and entities on the Bureau of Export Administration Entity List or involved with missile technology or nuclear, chemical or biological weapons).

  • Orthographic projection?

    Orthographic projection?

    Any suggestion for using this to cull a view using orthographic projection (directional shadow for example)? Ortho projection isn't compatible with z = 1/w transform used by library (w is always 1 for ortho). Is there any trick to make this work?

    opened by ingramb 11
  • Binning issues

    Binning issues

    I think there's two small issues with triangle binning:

    1.) In BinTriangles, binWidth/binHeight are rounded down to multiple of TILE_WIDTH/TILE_HEIGHT but then the binning code does not account for the lowest/rightmost row/column potentially being smaller than the resolution, thus missing some triangles. Rounding up instead seems to be ok (but CullingThreadpool::SetupScissors needs to be updated accordingly).

    2.) The CullingThreadpool::SetupScissors uses fixed values of BIN_WIDTH_CLAMP/BIN_HEIGHT_CLAMP which should actually be current implementation's TILE_WIDTH/TILE_HEIGHT. Since these are not tweakable anyway, it probably doesn't really matter, but it'd be nice to simply get them from the connected MaskedOcclusionCulling instance directly just to future proof.

    opened by fstrugar 3
  • rasterizer bug

    rasterizer bug

    rasterizer code seems to have a bug.

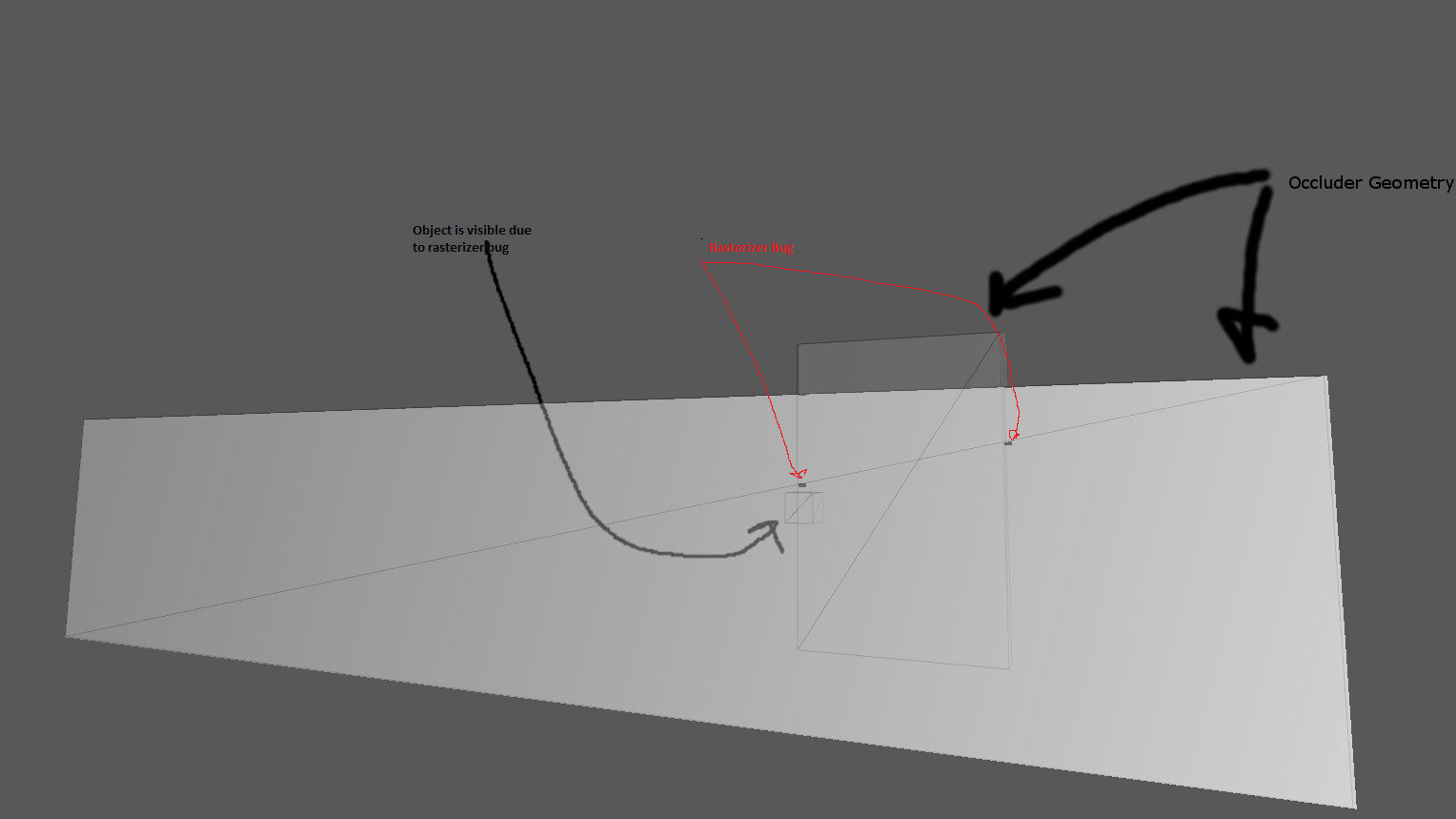

    Steps to reproduce: Render two boxes into the depth buffer and write the result into a bitmap file. Odd artefacts arise at triangle edges. See attached image.


    opened by brunntho 2
  • thread safe?

    thread safe?

    Hi, Is CullingThreadpool thread-safe and can be called from multiple threads to speed up processing? I tested with intel tbb parallell_for and I'v got following error "Access violation reading location"

    opened by PooyaEimandar 2
  • Confused about converting vertexes from world space to clipspace

    Confused about converting vertexes from world space to clipspace


    I was developing a graphics application using opengl. currently I met a problem on integrating your great MaskedOcclusionCulling lib. I was Confused about converting vertexes from world space to clipspace.

    Now I have a vertex array like this: float vertex[100]={x1,y1,z1,x2,y2,z2,...}

    in the "Readme" page, i noticed that you have mentioned this:

    // Example matrix swapping the x and y coordinates
    float swapxyMatrix[4][4] = {
    // Render triangle with transform.
    moc.RenderTriangles(triVerts, triIndices, nTris, swapxyMatrix);

    I followed this and my program crashed.

    Then I tried to use the TransformVertices() function, It is defined as:

         * \brief Utility function for transforming vertices and outputting them to an (x,y,z,w)
         *        format suitable for the occluder rasterization and occludee testing functions.
         * \param mtx Pointer to matrix data. The matrix should column major for post
         *        multiplication (OGL) and row major for pre-multiplication (DX). This is
         *        consistent with OpenGL / DirectX behavior.
         * \param inVtx Pointer to an array of input vertices. The input vertices are given as
         *        (x,y,z) cooordinates. The memory layout can be changed using vtxLayout.
         * \param xfVtx Pointer to an array to store transformed vertices. The transformed
         *        vertices are always stored as array of structs (AoS) (x,y,z,w) packed in memory.
         * \param nVtx Number of vertices to transform.
         * \param vtxLayout A struct specifying the vertex layout (see struct for detailed
         *        description). For best performance, it is advicable to store position data
         *        as compactly in memory as possible. Note that for this function, the
         *        w-component is assumed to be 1.0.
        static void TransformVertices(const float *mtx, const float *inVtx, float *xfVtx, unsigned int nVtx, const VertexLayout &vtxLayout = VertexLayout(12, 4, 8));

    However, i've no idea about how to get 'mtx' and a correct VertexLayout. Can you kindly help? Thanks!

    opened by bitxue 2
  • Thoughts about AVX512?

    Thoughts about AVX512?

    Hi, seems AVX512 is coming next year with Cannonlake and Skylake Xeon CPUs.. even before seeing source code can this project be ported to AVX512 easily or requires some thought and also what about perf scaling with 2X wider SIMD it provides assuming throughput via AVX512 is doubled vs AVX2 on these processors.. will this algorithm double in perf also or there is some non vectorizable parts in algorithm that limit scaling as SIMD width goes higher? thanks..

    opened by oscarbg 2
  • How to integrate it with Vulkan Coordinate System

    How to integrate it with Vulkan Coordinate System

    Hi I'm working on integrating this amazing library with vulkan. After creating right hand projection and view matrices , I used "MaskedOcclusionCulling::TransformVertices" function to transform triangles, unfortunately, the results for those objects that view_culled were ok, but the result of those objects which occluded were not ok.
    would you help me on this issue? Here is my project on GitHub.

    opened by PooyaEimandar 1
  • [D3DValidate] fix deallocation mismatch

    [D3DValidate] fix deallocation mismatch

    When we allocate an array using the new …[…] syntax, we should deallocate it using delete[]. In these cases, we needed to change delete to delete[]. If we use the wrong form of delete to match our allocation with new, we have undefined behavior.

    opened by bryonglodencissp 1
  • Update license.txt

    Update license.txt

    Hello! I would like to use a part of functionality from MaskedOcclusionCulling. And for that it's necessary to apply this license. So I need you to actualize your copyright information (year and your names) here "Copyright [yyyy] [name of copyright owner] Licensed under the Apache License". Thank you in advance! Best regards.

    opened by kitkachenko 0
  • SSE4.1 slow

    SSE4.1 slow

    Is there anything that can be done to improve performance for SSE4.1 code ? (without parallelization).

    PRECISE_COVERAGE is disabled already...and I'm getting 14 milliSeconds for rendering about 85kTri.

    Too close of the limit of 60 FPS (16.6 mS). An entire CPU core dedicated only for that.

    Thanks anyway. This algorithm is really great ! The Test Rectangle function is incredibly fast ! .

    opened by peplegal 0
  • Stuck with CullingThreadPool

    Stuck with CullingThreadPool

    The program got stuck when using CullingThreadPool, and going on with example code, I got the same problem after changing some code:

    //FillrateTest.cpp line 424
    for (int i = 0; i < numSizes; ++i)
    	int size = sizes[i];
    	//double t = BenchmarkTrianglesThreaded(verts[i], trisBtF[i], numTriangles[i], &ctp);
    	//change triangle count to 100
    	double t = BenchmarkTrianglesThreaded(verts[i], trisBtF[i], 100, &ctp);
    	double GPixelsPerSecond = (double)numTriangles[i] * size*size / (2.0 * 1e9 * t);
    	double MTrisPerSecond = (double)numTriangles[i] / (1e6 * t);
    	printf("Tri: %3dx%3d - Time: %7.2f ms, MTris/s: %6.2f GPixels/s: %5.2f \n", size, size, t * 1000.0f, MTrisPerSecond, GPixelsPerSecond);
    //CullingThreadpool.cpp line 187
    void CullingThreadpool::RenderJobQueue::Reset()
    	mWritePtr = 0;
    	mBinningPtr = 0;
    	for (unsigned int i = 0; i < mNumBins; ++i)
    		mRenderPtrs[i] = 0;
    	printf("checking...");  // just delay for a while using printf
    	for (unsigned int i = 0; i < mMaxJobs; ++i)
    		mJobs[i].mBinningJobCompletedIdx = -1;
    		mJobs[i].mBinningJobStartedIdx = -1;

    run FillrateTest

    opened by nhy002 3
This code converts a point cloud obtained by a Velodyne VLP16 3D-Lidar sensor into a depth image mono16.

pc2image This code converts a point cloud obtained by a Velodyne VLP16 3D-Lidar sensor into a depth image mono16. Requisites ROS Kinetic or Melodic Ve

Edison Velasco Sánchez 6 May 18, 2022
Fast, hierarchical, sparse Voxel Grid

Treexy is a library that implements a compact hierarchical data structure that can store and manipulate volumetric data, discretized on a three-dimens

Davide Faconti 323 Dec 21, 2022
Fast, hierarchical, sparse Voxel Grid

Treexy is a library that implements a compact hierarchical data structure that can store and manipulate volumetric data, discretized on a three-dimens

Davide Faconti 323 Dec 21, 2022
Hierarchical Engine for Large-scale Infrastructure Co-Simulation (HELICS)

A multi-language, cross-platform library that enables different simulators to easily exchange data and stay synchronized in time. Scalable from two si

GMLC-TDC 83 Dec 23, 2022
Example-application - Example out-of-tree application that is also a module

Zephyr Example Application This repository contains a Zephyr example application. The main purpose of this repository is to serve as a reference on ho

Zephyr Project 82 Dec 13, 2022
An STL-compatible, legible ring buffer in C++11.

baudvine/ringbuf Overview This is a header-only ring/circular buffer implementation in C++11, with the following goals: Reasonably performant. Readabl

Dominic van Berkel 14 Sep 13, 2022
Minimalist protocol buffer decoder and encoder in C++

protozero Minimalistic protocol buffer decoder and encoder in C++. Designed for high performance. Suitable for writing zero copy parsers and encoders

Mapbox 237 Dec 23, 2022
Buffer reader/builder for C

ubuf ubuf is a simple interface for reading/writing binary data. It handles automatically expanding the buffer and byte order for you, but that's abou

adrian 2 Jan 10, 2022
Example program demonstrating the Meijster's distance transform algorithm.

Distance Transform The distance transform operation consist in finding the shortest distance of a black pixel to a white one. This project demonstrate

Code In Colors 1 Nov 15, 2021
Supplementary code for SIGGRAPH 2021 paper: Discovering Diverse Athletic Jumping Strategies

SIGGRAPH 2021: Discovering Diverse Athletic Jumping Strategies project page paper demo video Prerequisites Important Notes We suspect there are bugs i

null 54 Dec 6, 2022
Repository Containing the Code associated with the Paper: "Learning High-Speed Flight in the Wild"

Learning High-Speed Flight in the Wild This repo contains the code associated with the paper Learning Agile Flight in the Wild. For more information,

Robotics and Perception Group 396 Jan 3, 2023
Code accompanying our SIGGRAPH 2021 Technical Communications paper "Transition Motion Tensor: A Data-Driven Approach for Versatile and Controllable Agents in Physically Simulated Environments"

SIGGRAPH ASIA 2021 Technical Communications Transition Motion Tensor: A Data-Driven Framework for Versatile and Controllable Agents in Physically Simu

null 10 Apr 21, 2022
This repo contains source code of our paper presented in IROS2021 "Single-Shot is Enough: Panoramic Infrastructure Based Calibration of Multiple Cameras and 3D LiDARs"

Single-Shot is Enough: Panoramic Infrastructure Based Calibration of Multiple Cameras and 3D LiDARs Updates [2021/09/01] first commit, source code of

Alibaba 83 Dec 19, 2022
Sandbox binary and source code for the Siggraph 2017 paper "Water Wave Packets" by Stefan Jeschke (NVIDIA) and Chris Wojtan (IST Austria)

----------------------------- Manual for wave packet viewer ----------------------------- System requirements: Windows8/8.1/10 with DirectX runtime e

Stefan Jeschke 37 Nov 28, 2022
Code for the paper Succinct k-mer Set Representations Using Subset Rank Queries on the Spectral Burrows-Wheeler Transform (SBWT)

SBWT This is the code for the paper Succinct k-mer Set Representations Using Subset Rank Queries on the Spectral Burrows-Wheeler Transform (SBWT). The

Algorithmic Bioinformatics Group @ University of Helsinki 14 Jun 18, 2022
Some hypervisor research notes. There is also a useful exploit template that you can use to verify / falsify any assumptions you may make while auditing code, and for exploit development.

Introduction Over the past few weeks, I've been doing some hypervisor research here and there, with most of my focus being on PCI device emulation cod

Faith 130 Nov 18, 2022
Jaws is an invisible programming language! Inject invisible code into other languages and files! Created for security research -- see blog post

Jaws is an invisible interpreted programming language that was created for antivirus research. Since Jaws code is composed entirely of whitespace char

C.J. May 208 Dec 9, 2022
Masters degree research project source code. Might come back to it later.

Camflow Network Provenance Authors Tray Keller and Austin Waddell CamFlow and the Linux Provenance Module (LPM) framework are both an excellent step i

Tray Keller 2 Mar 14, 2022
Elk is a tiny embeddable JavaScript engine that implements a small but usable subset of ES6

Elk is a tiny embeddable JavaScript engine that implements a small but usable subset of ES6. It is designed for microcontroller development. Instead of writing firmware code in C/C++, Elk allows to develop in JavaScript. Another use case is providing customers with a secure, protected scripting environment for product customisation.

Cesanta Software 1.5k Jan 8, 2023
